HT0208-HT2511

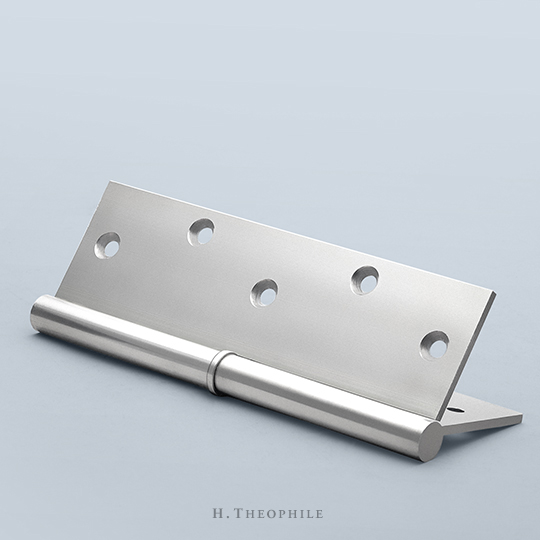

The HT0208 elongated round paumelle is a premium lift-off hinge manufactured from solid brass extrusion with a fixed stainless steel pin and concealed bearing. Shown here with flat, raised washer HT2511.

Leaf thicknesses comply to ANSI standards for standard and heavy-weight doors.

Available in all finishes.

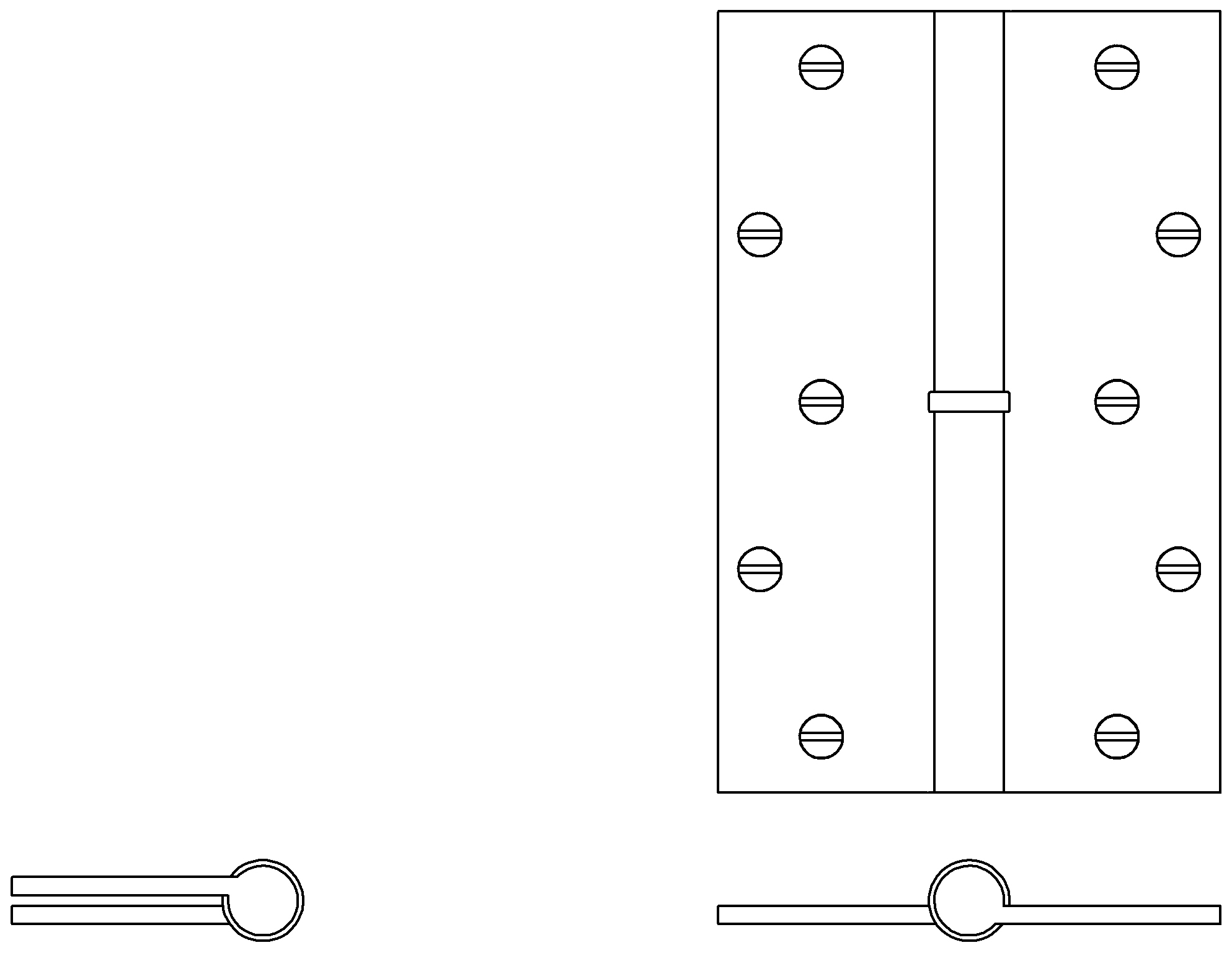

H Theophile Diagram HT0208-HT2511.jpg

LEAF HT. WIDTH KNUCKLE LEAF
7" 4" 5/8" .203"
7" 4-1/2" 5/8" .203"
7" 5" 5/8" .203"
7" 5-1/2" 5/8" .203"
