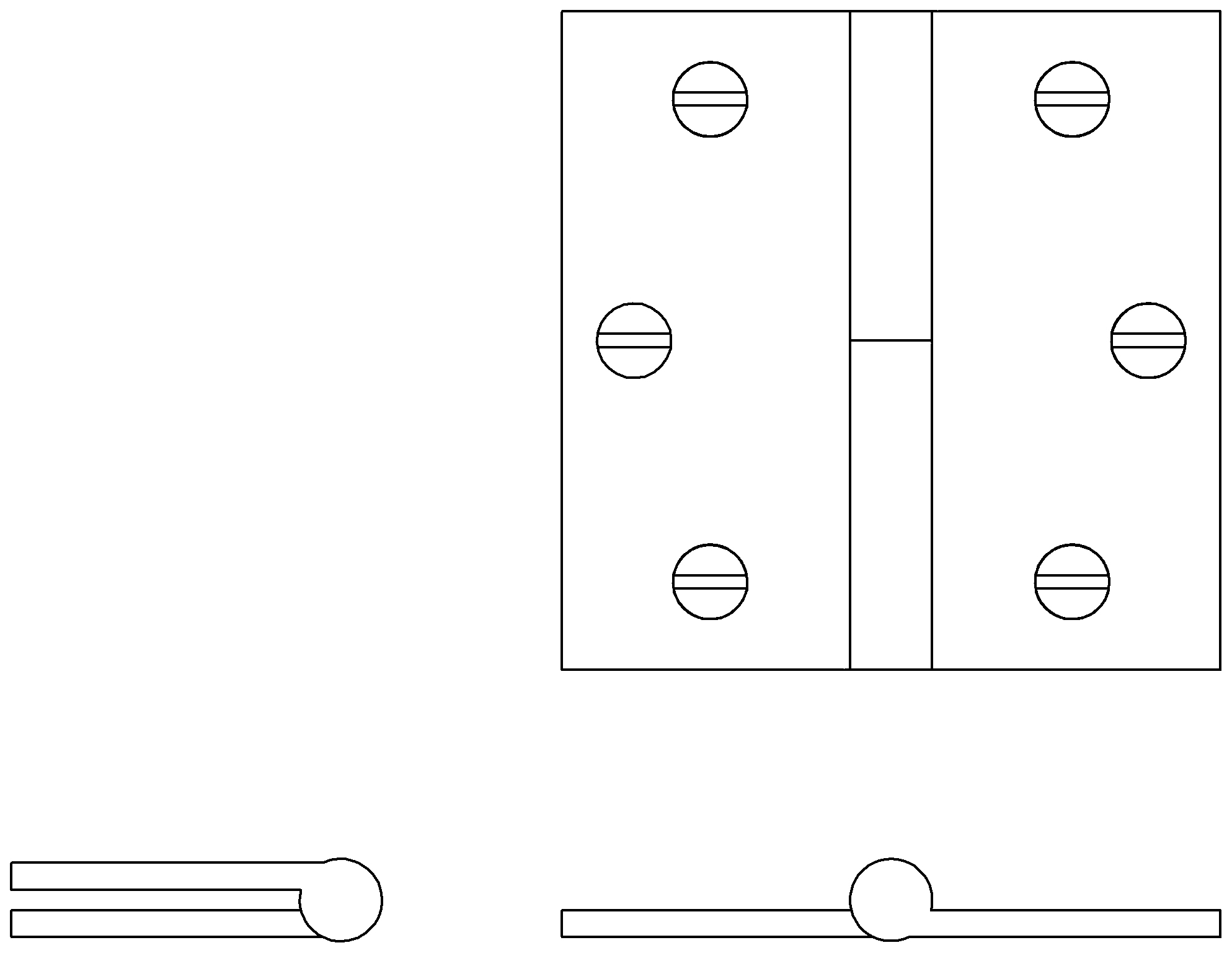

HT0212

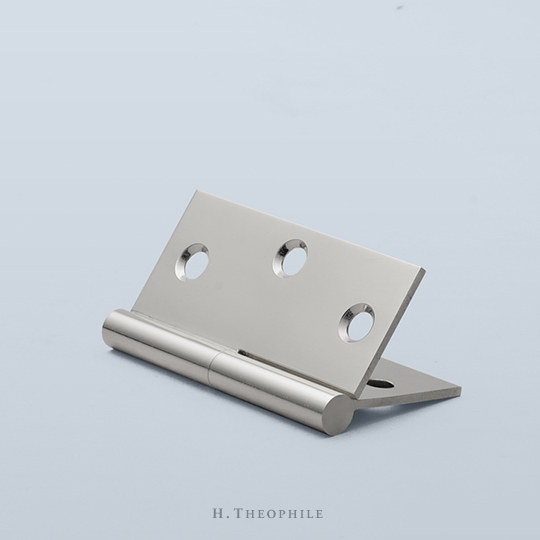

The HT0212 round paumelle is a premium lift-off cabinet hinge manufactured from solid brass extrusion with a fixed stainless steel pin.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 1-1/2" | 1-1/2" | 5/16" | .082" |
| 2" | 1-1/2" | 5/16" | .082" |
| 2" | 1-3/4" | 5/16" | .09" |
| 2" | 2" | 5/16" | .09" |
| 2-1/2" | 1-3/4" | 5/16" | .09" |
| 2-1/2" | 2" | 5/16" | .09" |
| 2-1/2" | 2-1/2" | 5/16" | .092" |
| 3" | 2" | 5/16" | .09" |
| 3" | 2-1/2" | 5/16" | .092" |
| 3" | 3" | 3/8" | .092" |
