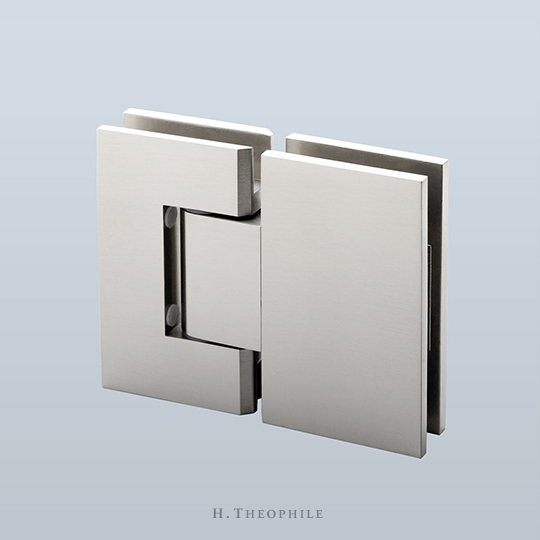

The HT0815 is a glass-to-glass hinge with a clean, modern feel and solid brass construction. It coordinates with glass thicknesses of 3/8" to 1/2" and can swing a total of 180°. Two glass-to-glass hinges can accommodate a door up to 80 lbs, while three hinges can accommodate a door up to 120 lbs. Available in a variety of standard finishes.

Available in larger sizes; see HT0822 and HT0823. Also available in a wall-mount to glass version; please specify when ordering as specifications are different.

Available in all finishes.

H Theophile Diagram HT0815.jpg

LEAF HT. OVERALL WIDTH
3-1/2" 4-3/8"
