The HA9159x is a motor drive electric lock and is UL-listed (3-hr). Keyed cylinder will override electronics to retract latch bolt. No thumbturn is required. Minimum door thickness is 1-3/4". Emergency egress always from interior side.
- Universal input voltage (accepts between 10.9V-26.4V)
- Can easily be changed from Fail Secure to Fail Safe onsite

Grade 1 certified to ANSI/BHMA, A156.13.2005 standard

Available in all finishes.

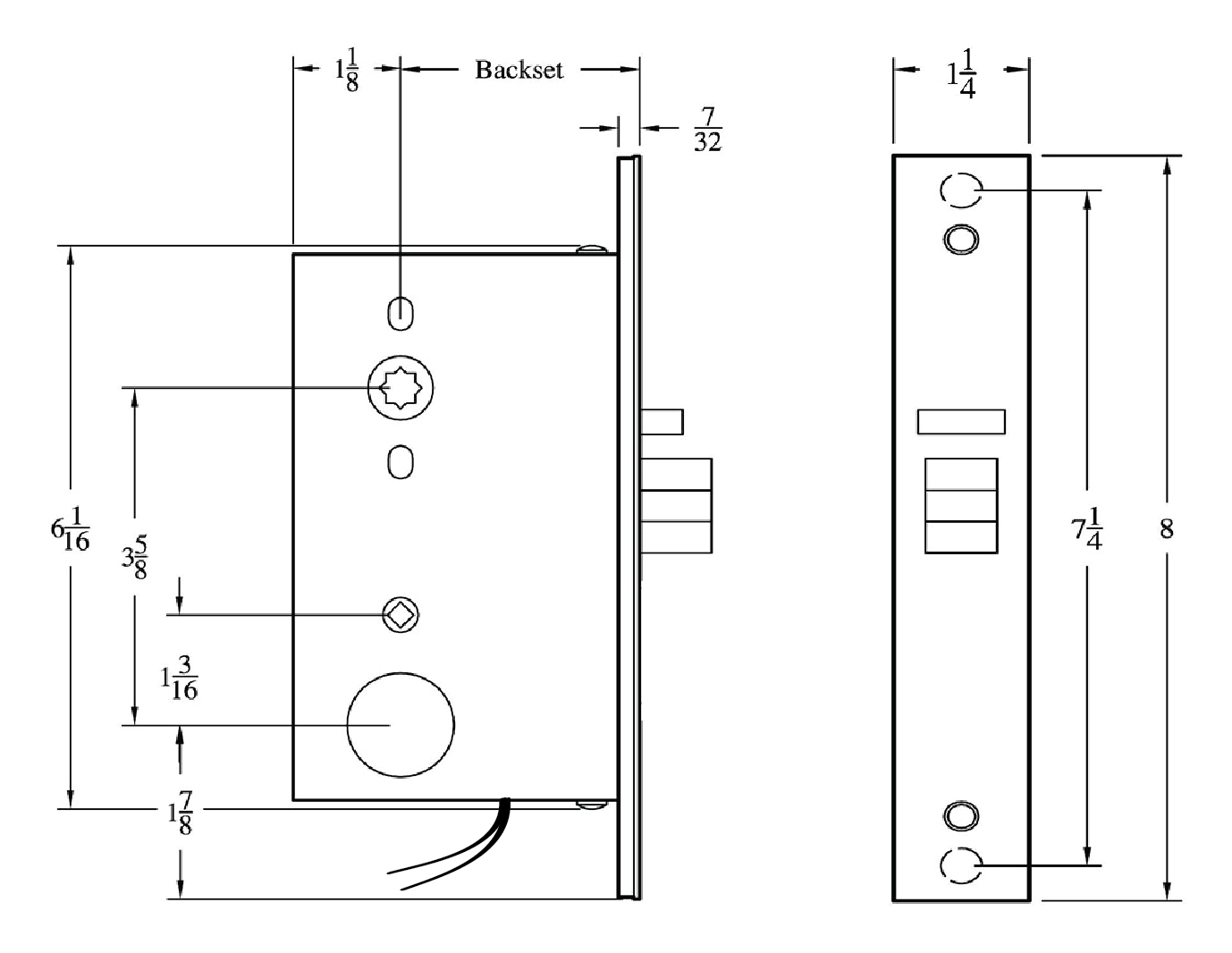

H Theophile Diagram HA9159x.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2-1/2" 3-5/8" 15/16"
2-3/4" 3-7/8" 15/16"
3-3/4" 4-7/8" 15/16"
5" 6-1/8" 15/16"
6" 7-1/8" 15/16"
