HT7250-HT6068

◀   BACK TO CATALOG

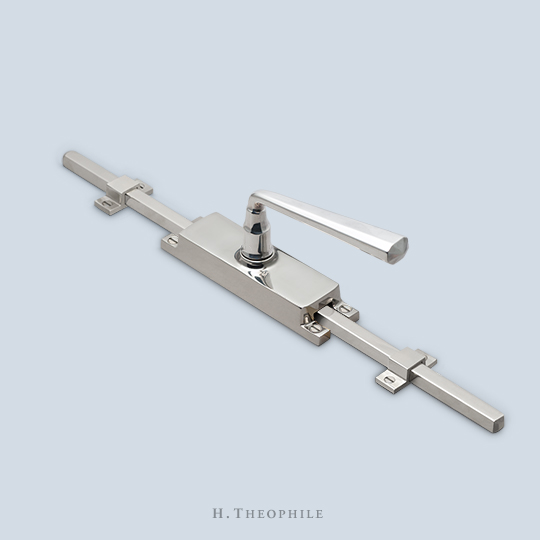

The HT7250 cremone features a rectilinear housing and is typically used to lock french doors and casement windows. It is shown here paired with the HT6068 lever and the HT7052 rod guides. Several strike options and rod lengths are available and specified to suit each specific application. All cremone trims are available in standard and custom finishes.

Rod guide dimension: 1-11/16" width x 3/4" length
Rod dimension: 9/16" x 5/16"
Throw: 1/2"
Handle rotation: 90 degrees

Available in all finishes.

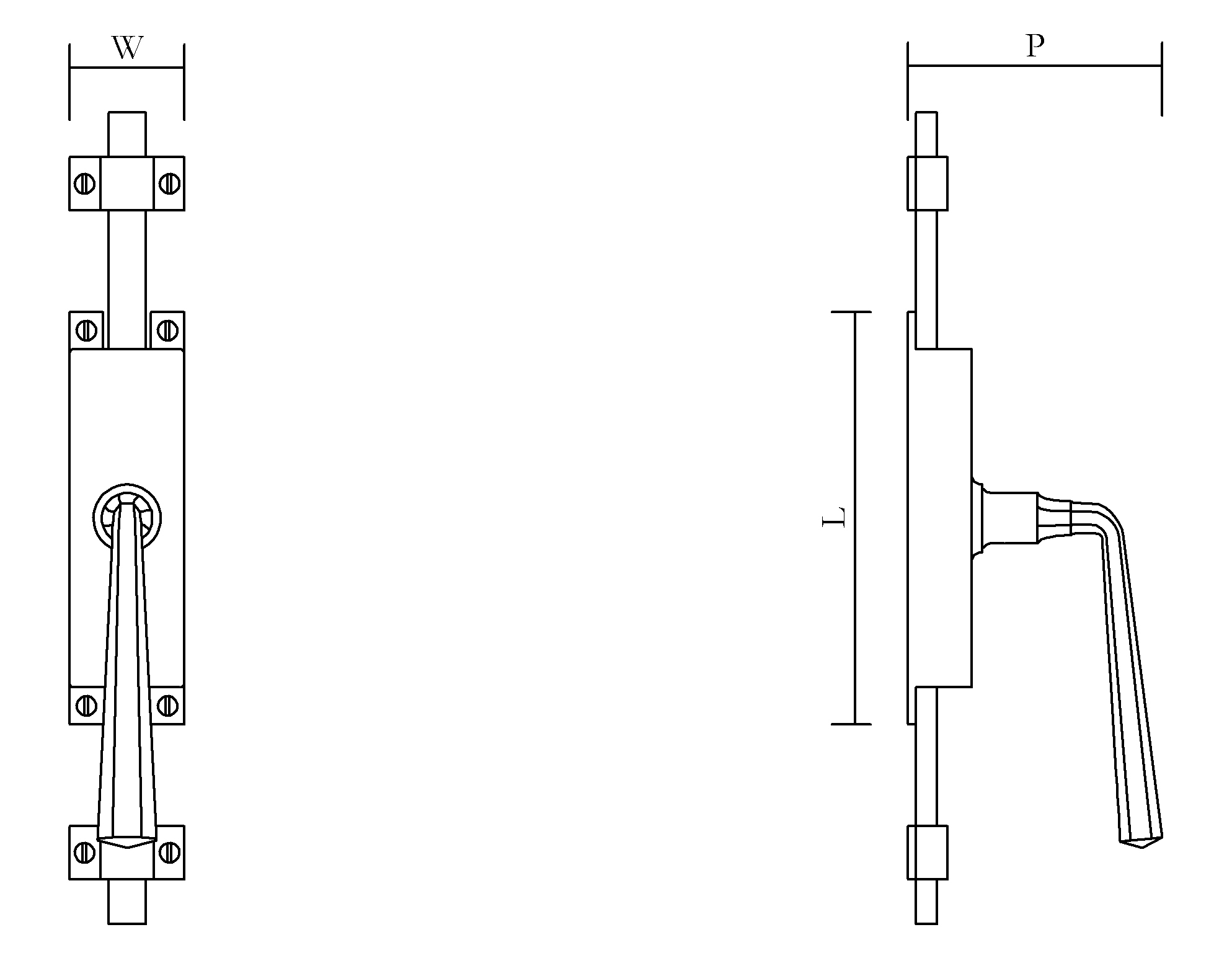

H Theophile Diagram HT7250-HT6068.jpg

BOX                L x W HANDLE LENGTH PROJECTION
6-1/8" x 1-11/16" 5-5/16" overall 3-11/16"
