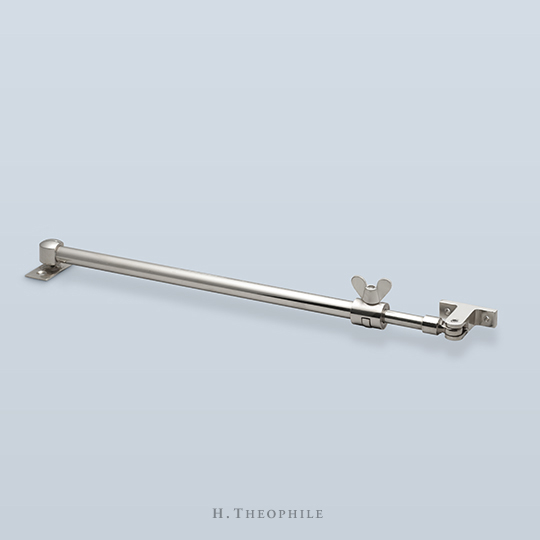

The HT7022 is a telescoping casement stay for hinged casement windows, and features a wing nut knob. It can be custom finished to suit project requirements.

Sill plate dimension: 1-7/8" x 3/4"
Sash plate dimension: 1-5/8" x 1/2"
Height (H): 1-1/2"
Projection (P): 2-1/8"

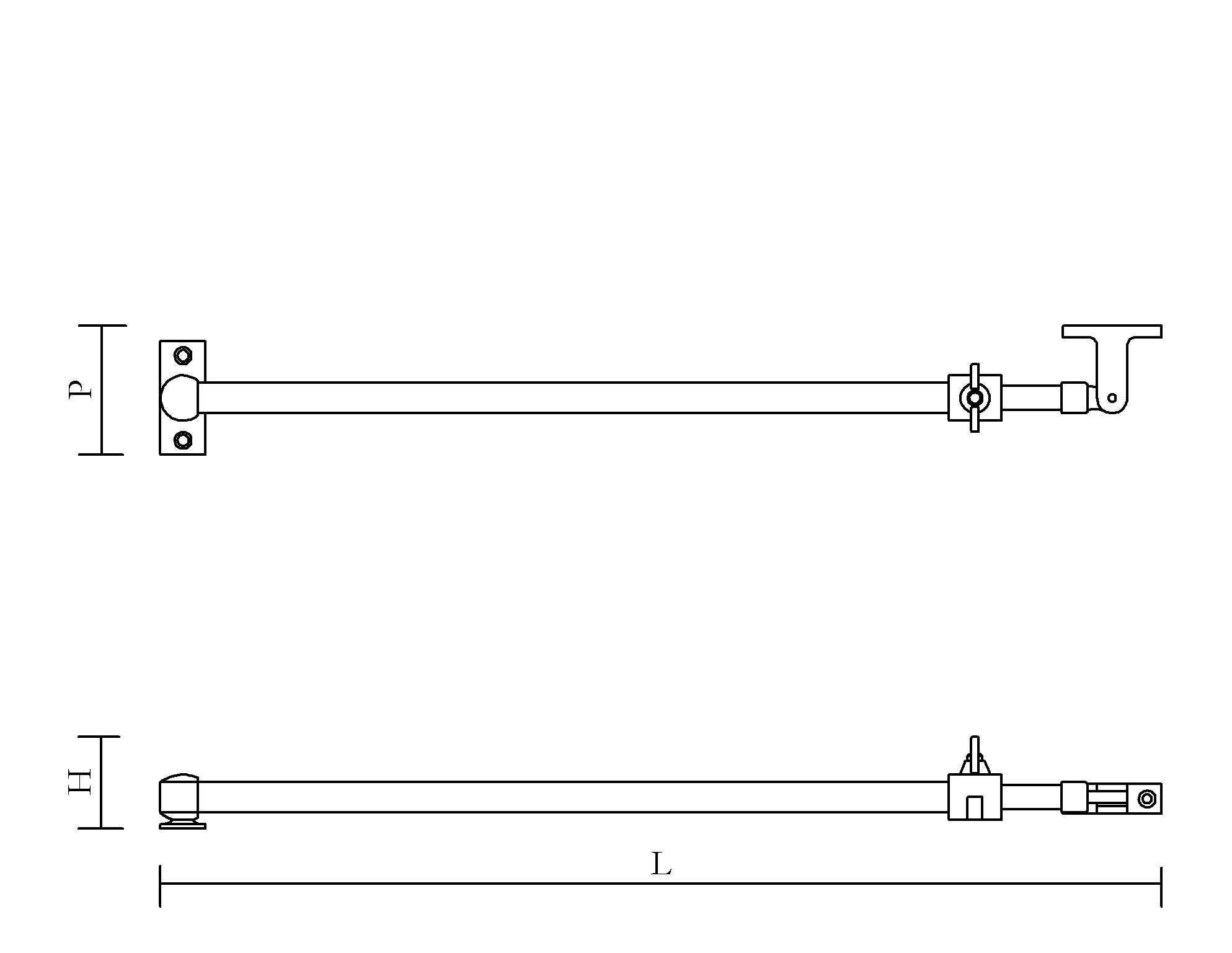

H Theophile Diagram HT7022.jpg

LENGTH (L)
15" to 28"
12" to 22"
10" to 18"
