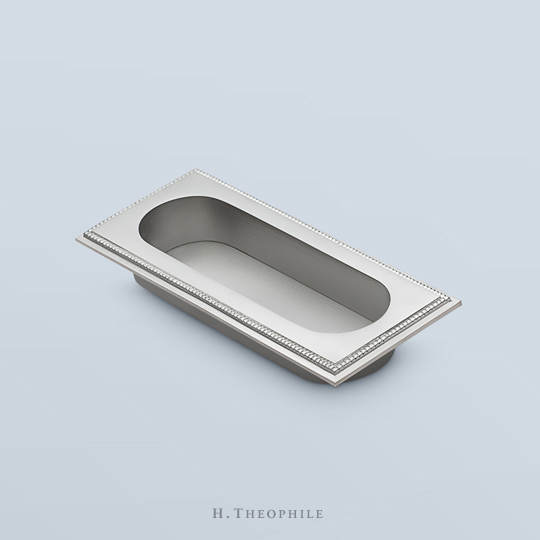

The HT9093b recessed pull features a beaded perimeter around its racetrack window.

This pull can be used as a sash lift or on sliding doors, and can be adapted for swing doors with privacy and keyed functions; specify when ordering.

A minimal box depth (mortised depth behind face frame) is shown; other depths are also available.

Available in all finishes.

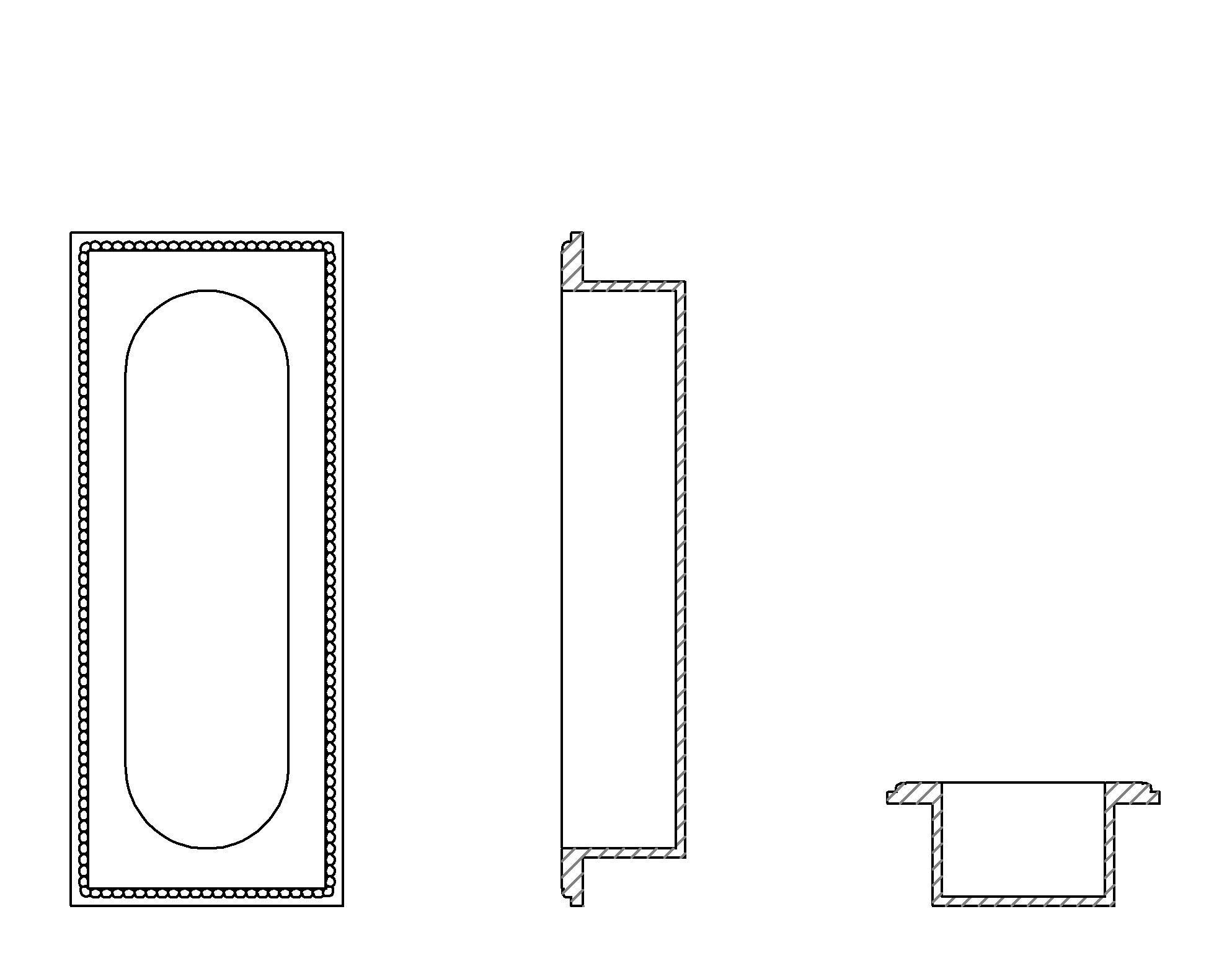

H Theophile Diagram HT9093b.jpg

LENGTH WIDTH PROJECTION BOX DEPTH
4" 1-5/8" 1/8" 7/16"
