HT9983

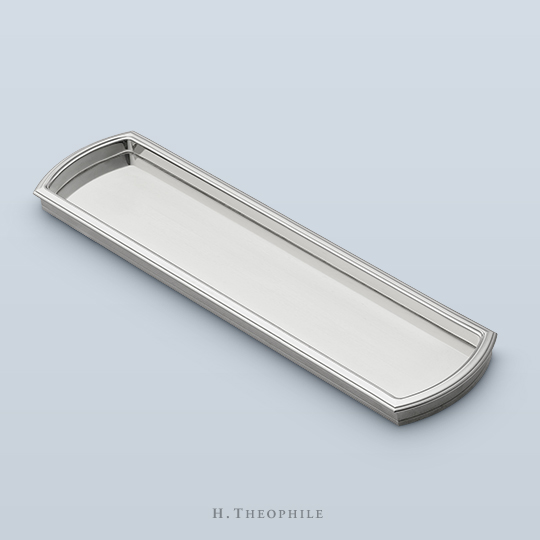

The HT9983 recessed pull has a delicate, multi-stepped classical perimeter edging.
This pull can be used on sliding doors and can be adapted for swing doors and privacy or keyed functions; specify when ordering.

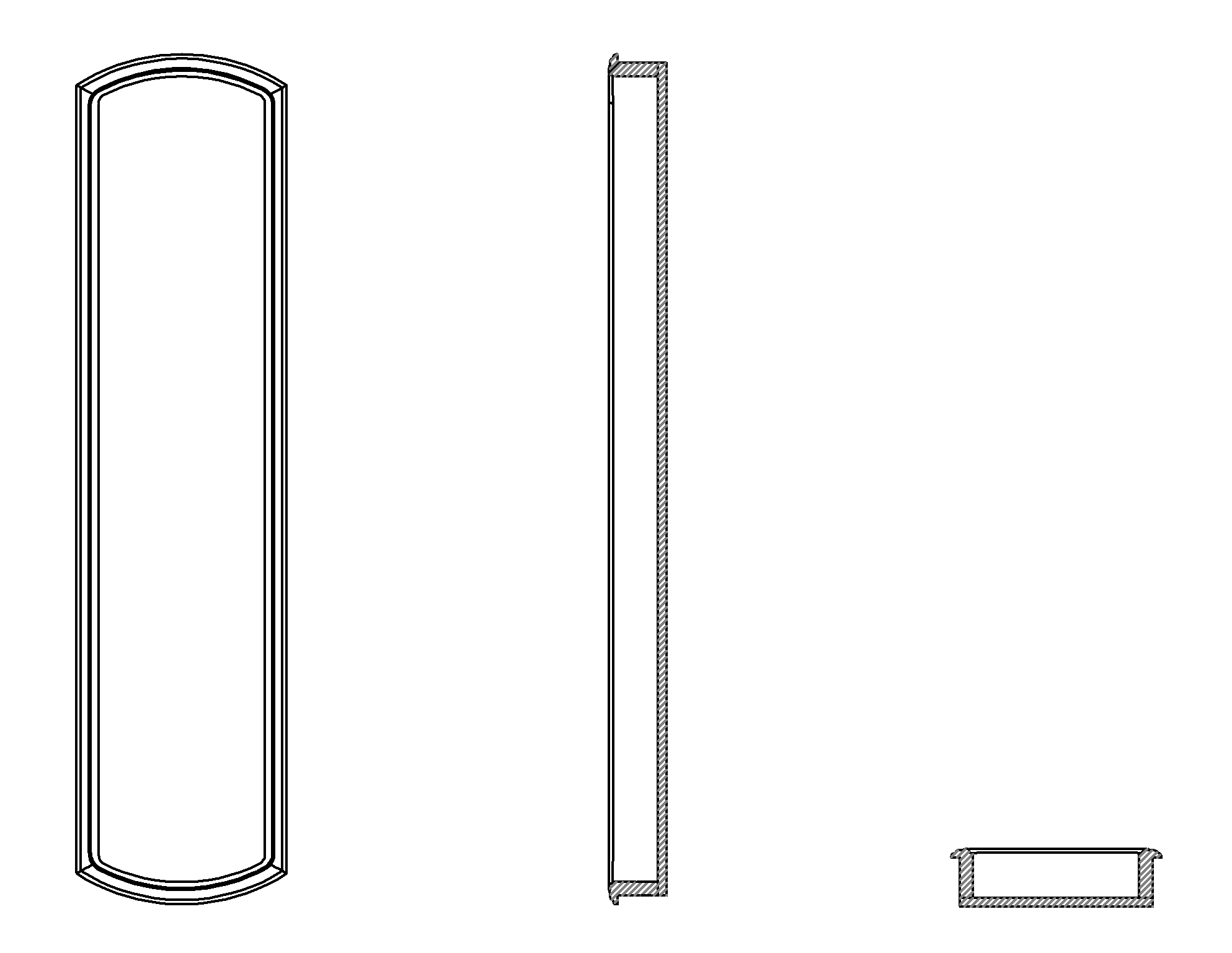

A minimal box depth (mortised depth behind face frame) is shown; other depths are also available.
Available in all finishes.
| LENGTH | WIDTH | PROJECTION | BOX DEPTH |
|---|---|---|---|
| 4" | 2-1/8" | 1/16" | 7/16" |
| 4" | 3" | 1/8" | 7/16" |
| 7" | 2-1/4" | 1/8" | 7/16" |
| 7" | 3" | 1/8" | 7/16" |
| 12" | 3" | 1/8" | 7/16" |
