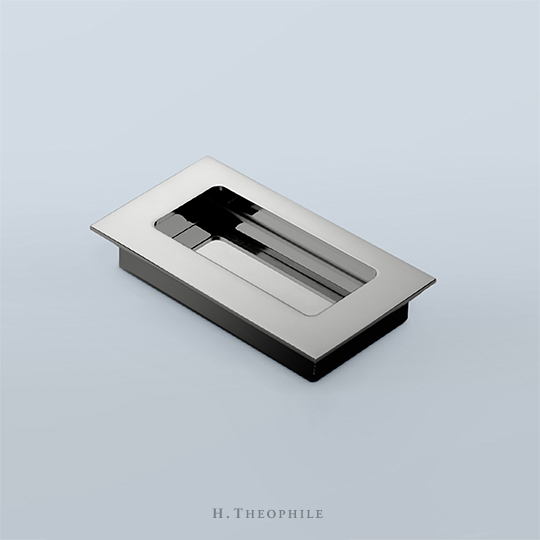

HT9018
The HT9018 recessed pull has a slight asymmetry. The interior corners of the recess are slightly radiused. This pull can be used on sliding or swing doors; specify when ordering.

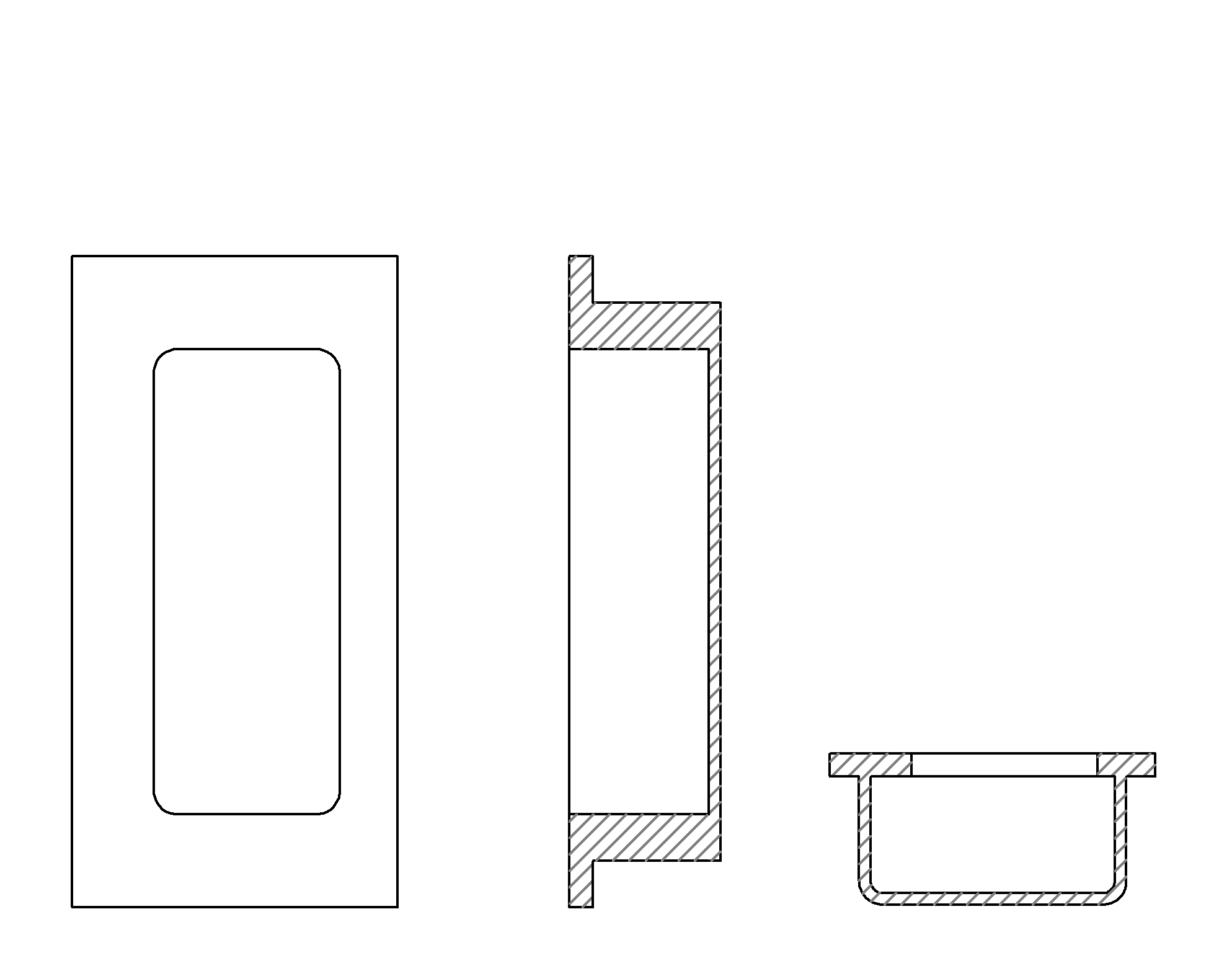

Standard box depth (mortised depth behind face frame) is shown.
Available in all finishes.
| LENGTH | WIDTH | PROJECTION | BOX DEPTH |
|---|---|---|---|
| 3-1/2" | 1-3/4" | 1/8" | 11/16" |
| 5" | 1-3/4" | 1/8" | 11/16" |
