HT9403

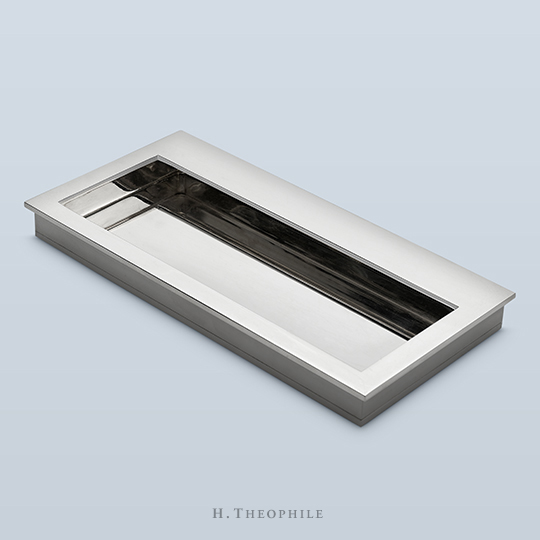

The HT9403 rectangular recessed pull features an offset window. This pull can be used on sliding or swing doors (if specified with a lip), and can be adapted for privacy and keyed functions. Please specify function when ordering.
Available in a wide variety of sizes and depths; a few representative sizes and depths are shown in the tearsheet table.
Available in all finishes.

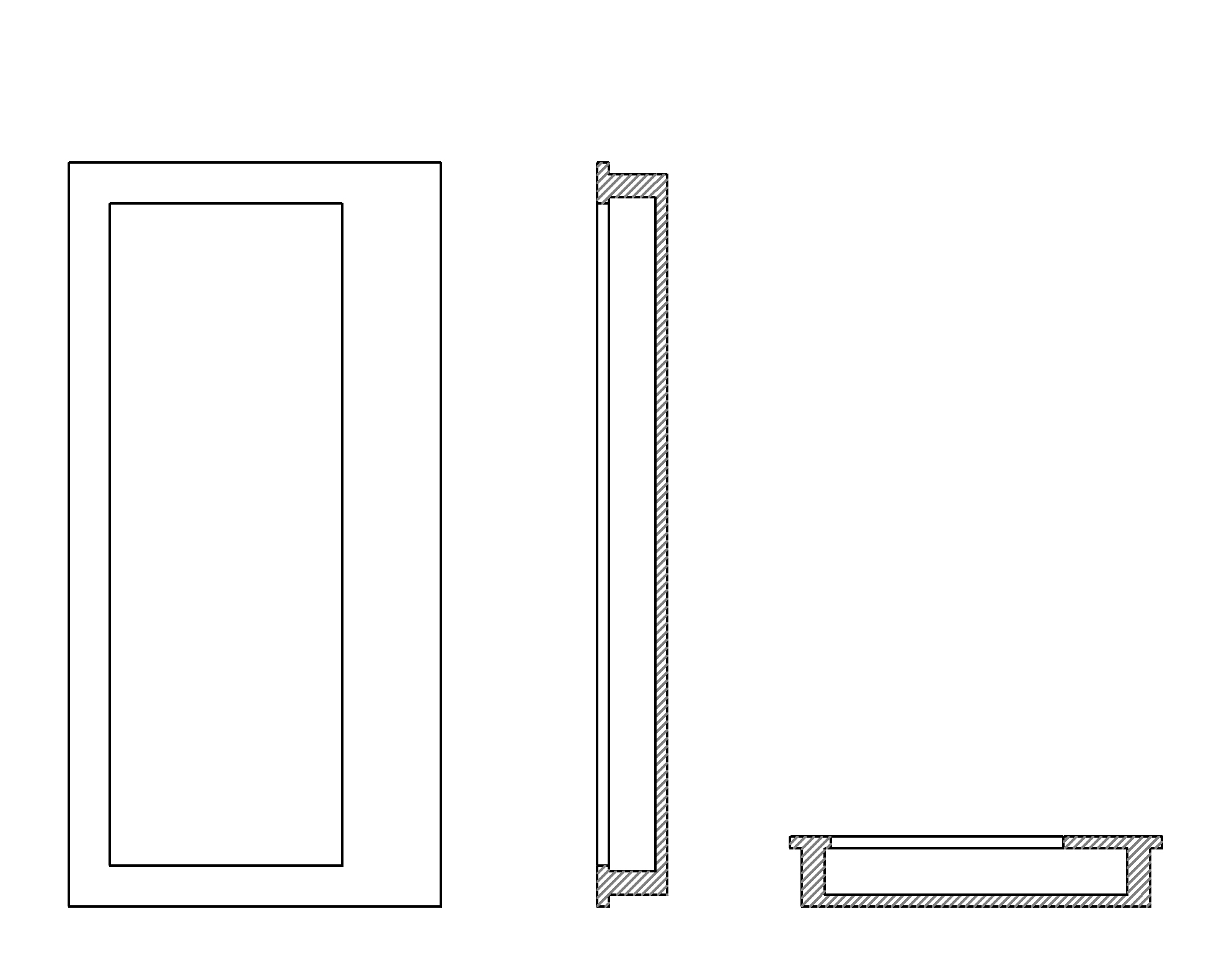

| LENGTH | WIDTH | PROJECTION | BOX DEPTH |
|---|---|---|---|
| 4" | 2" | 1/8" | 7/16" |
| 5" | 3" | 1/8" | 7/16" |
| 6" | 2-1/2" | 1/8" | 7/16" |
| 8" | 4" | 1/8" | 7/16" |
| 16" | 2-3/8" | 1/8" | 7/16" |
| 16" | 2-3/8" | 1/8" | 13/16" |
