HT0207-HT2515

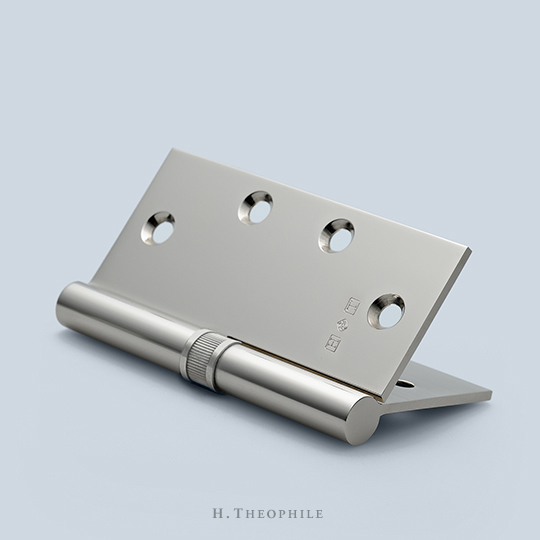

The HT0207 round paumelle is a premium lift-off hinge with a fixed stainless steel pin and concealed bearings. Shown here with knurled washer HT2515. Other sizes and washer designs are available.

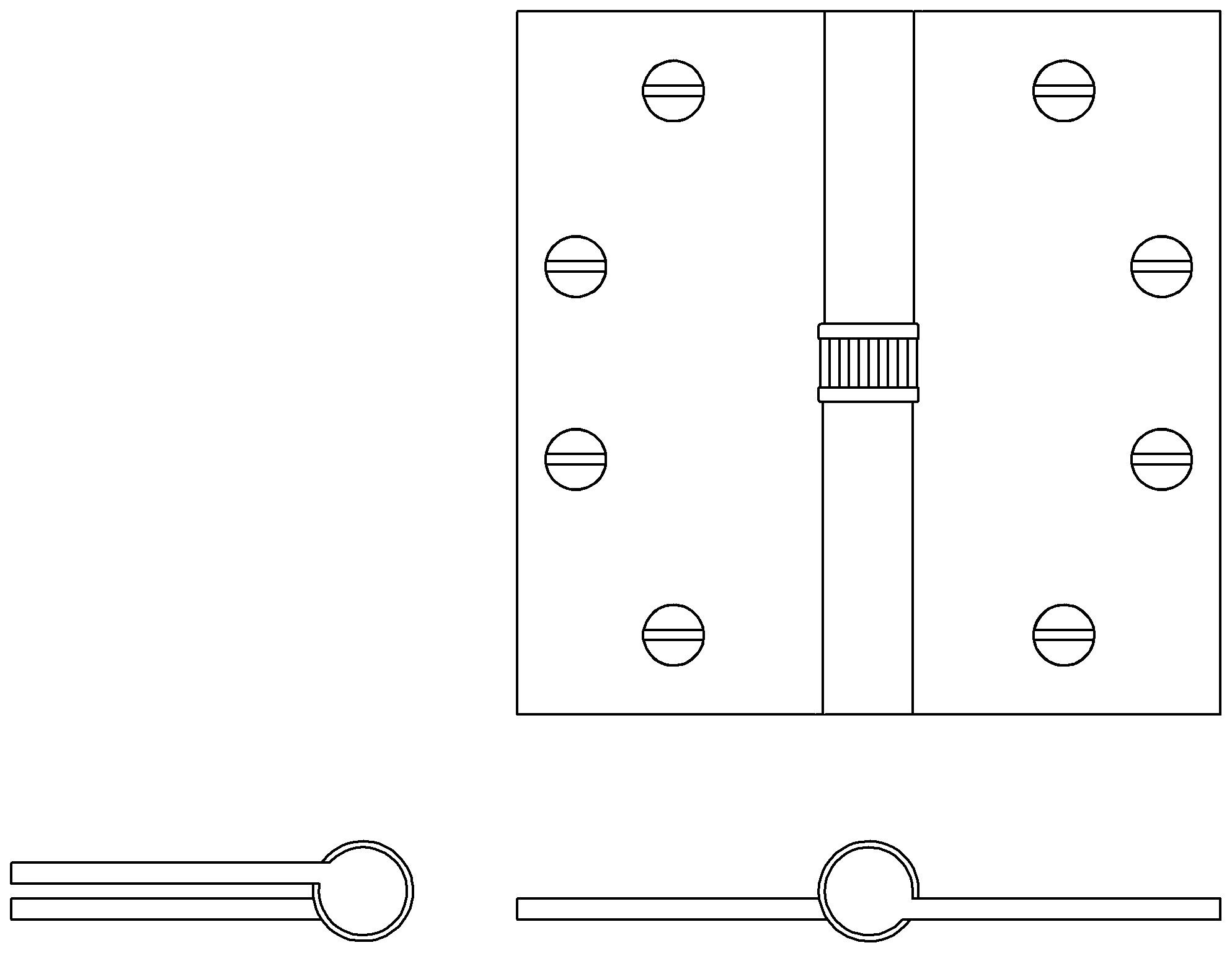

H Theophile Diagram HT0207-HT2515.jpg

LEAF HT. WIDTH KNUCKLE LEAF
3-1/2" 3-1/2" 1/2" .123"
4" 3-1/2" 1/2" .123"
4" 4" 1/2" .13"
4-1/2" 4" 1/2" .13"
4-1/2" 4-1/2" 9/16" .135"
5" 4" 9/16" .135"
5" 4-1/2" 9/16" .135"
5" 5" 9/16" .146"
6" 6" 5/8" .165"
