HT0404-HT0901

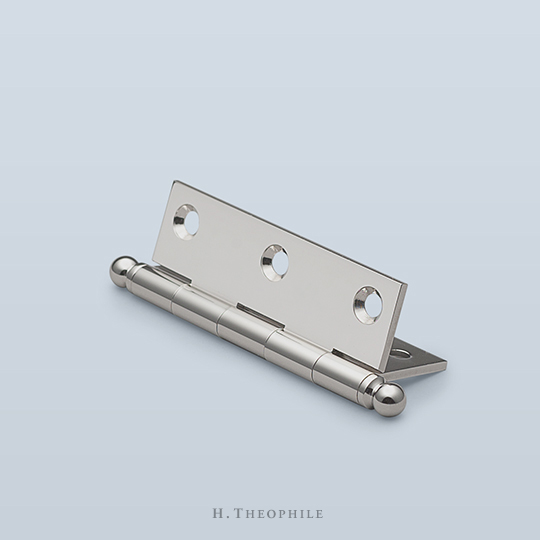

The HT0404 is a premium cabinet butt hinge manufactured from solid brass extrusion. Shown with HT0901 ball finial. Other finial designs are also available.

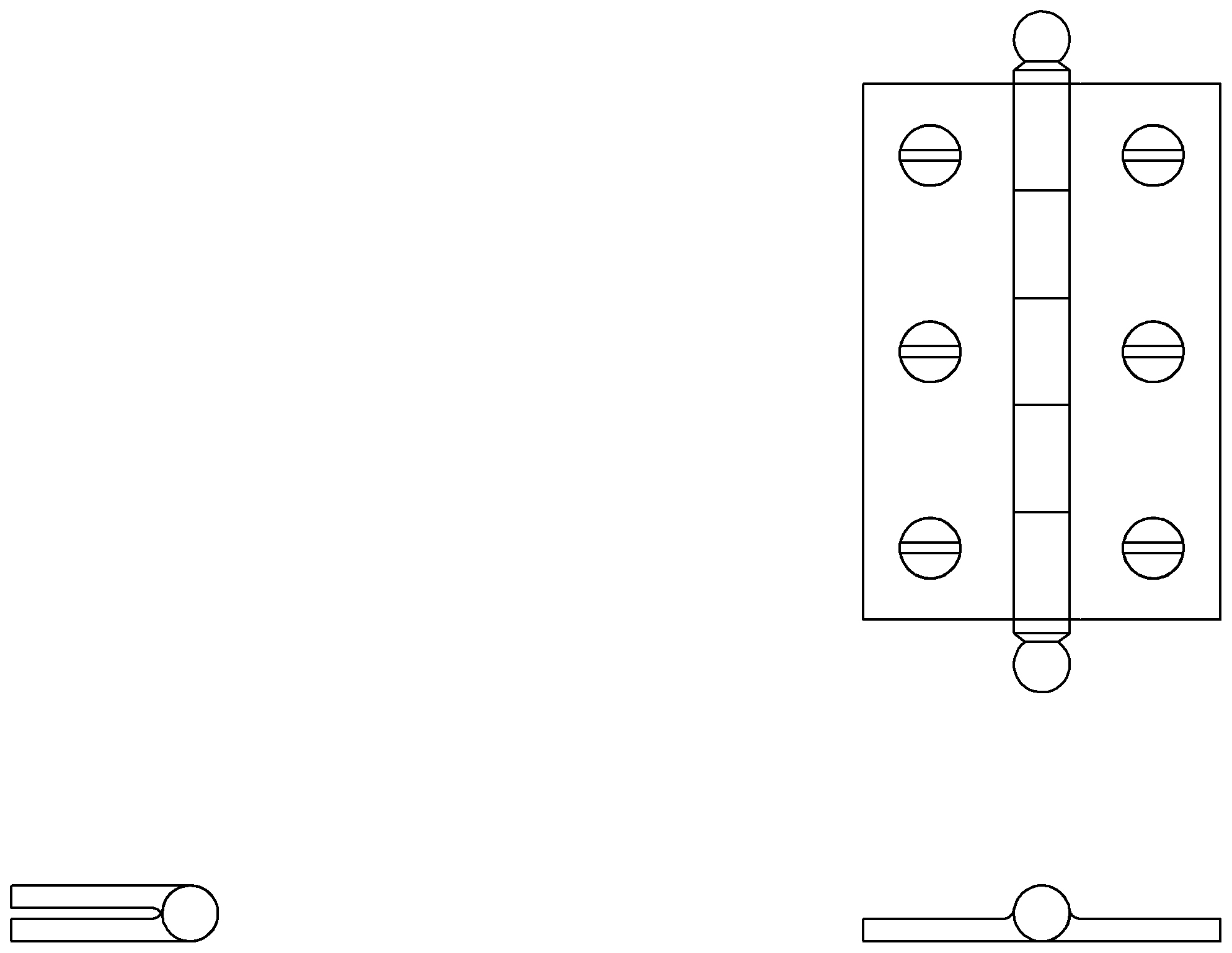

H Theophile Diagram HT0404-HT0901.jpg

LEAF HT. WIDTH KNUCKLE LEAF
1-1/2" 1-1/2" 5/16" .082"
2" 1-1/2" 5/16" .082"
2" 1-3/4" 5/16" .09"
2" 2" 5/16" .09"
2-1/2" 1-3/4" 5/16" .09"
2-1/2" 2" 5/16" .09"
2-1/2" 2-1/2" 5/16" .092"
3" 2" 5/16" .09"
3" 2-1/2" 5/16" .092"
3" 3" 3/8" .092"
