HT0511-HT2515

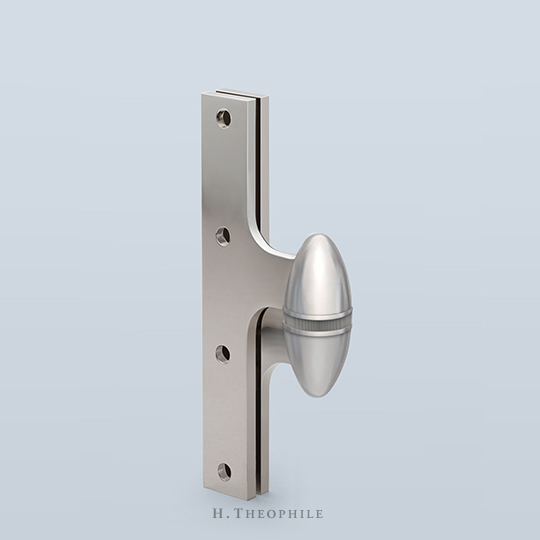

The HT0511 is a premium olive-knuckle hinge with a fixed stainless steel pin and concealed bearing assembly embedded within the hinge knuckle. Typically suited for door thicknesses of 1-3/4" and below. Shown here with knurled washer HT2515. Other washer designs are also available.

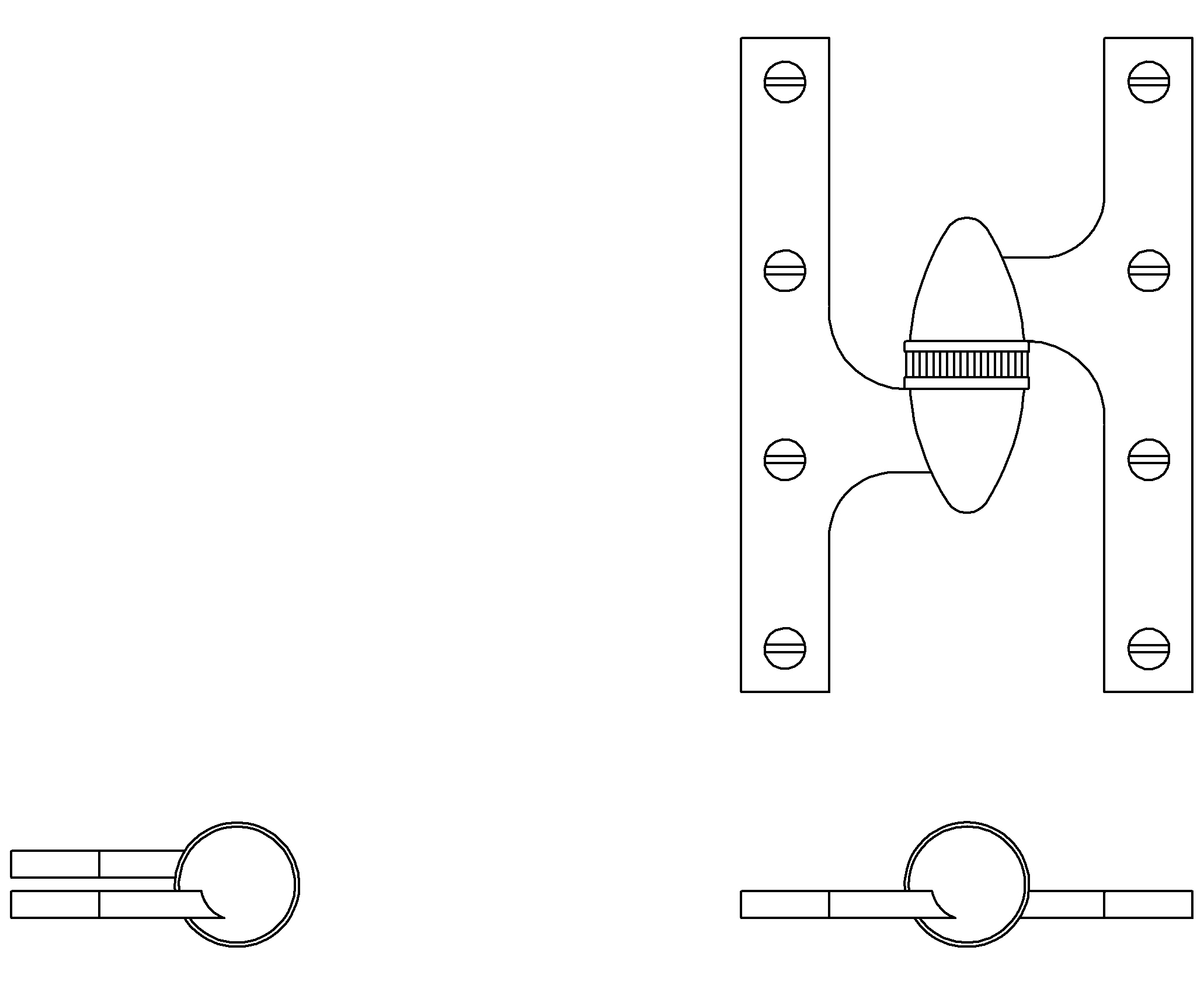

H Theophile Diagram HT0511-HT2515.jpg

LEAF HT. WIDTH KNUCKLE LEAF
6" 3-7/8" .945" .203"
