HT0517-HT2513

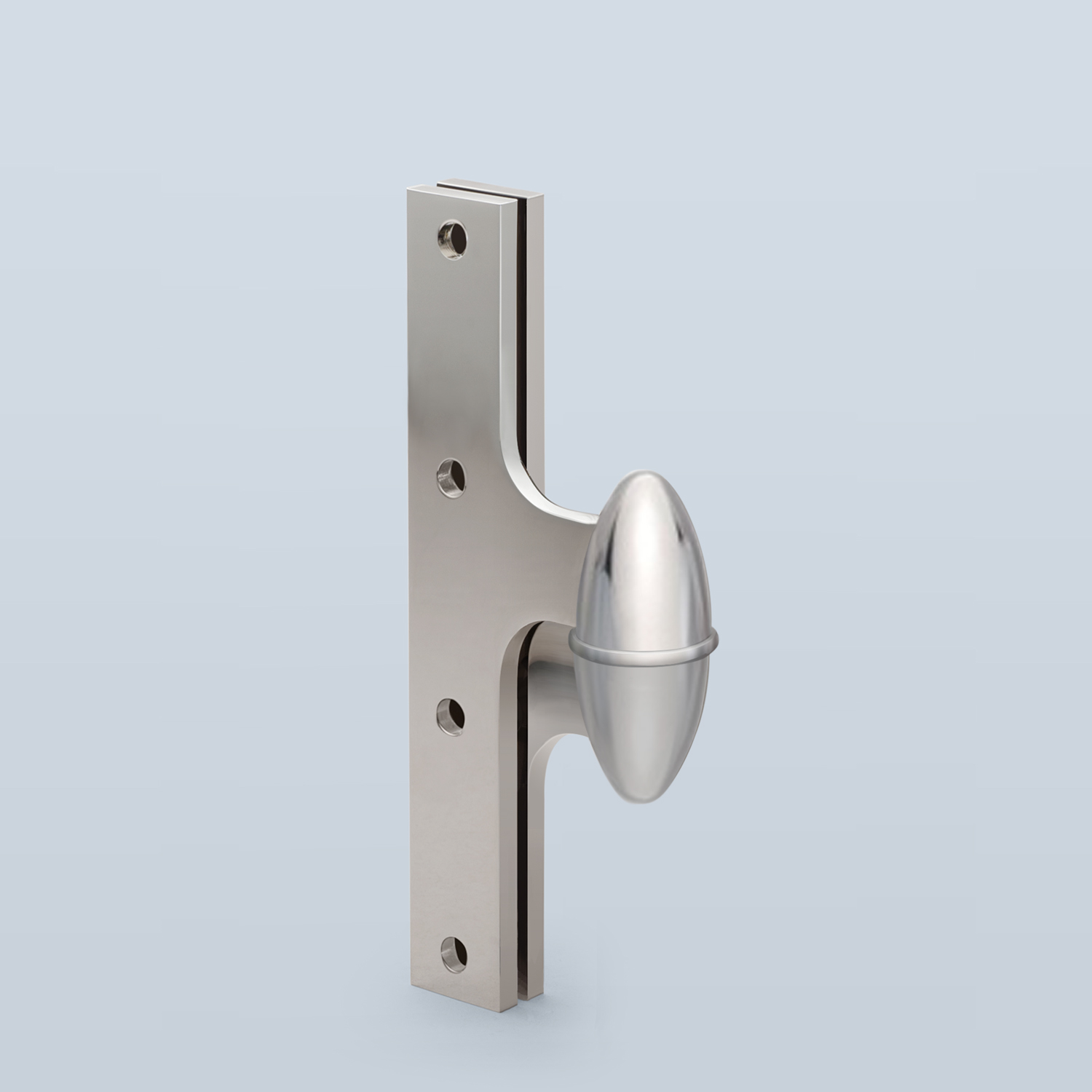

The HT0517 is a premium olive-knuckle hinge with a fixed stainless steel pin and concealed bearing. Typically suited for door thicknesses of 1-3/4" and below. Shown here with round washer HT2513. Other washer designs are also available.

H Theophile Diagram HT0517-HT2513.jpg

LEAF HT. WIDTH KNUCKLE LEAF
6" 3-7/8" 15/16" 1/4"
