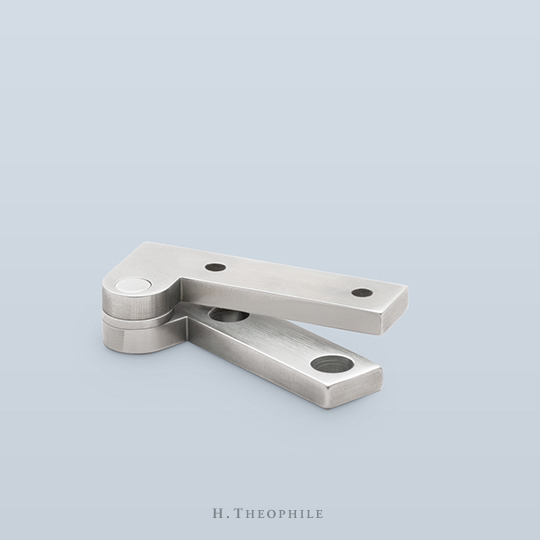

The HT0713 offset pivot cabinet hinge is offered in a variety of sizes to accommodate various cabinetry applications and conditions including door weight. This pivot hinge comes standard with a flat washer, finished to match.

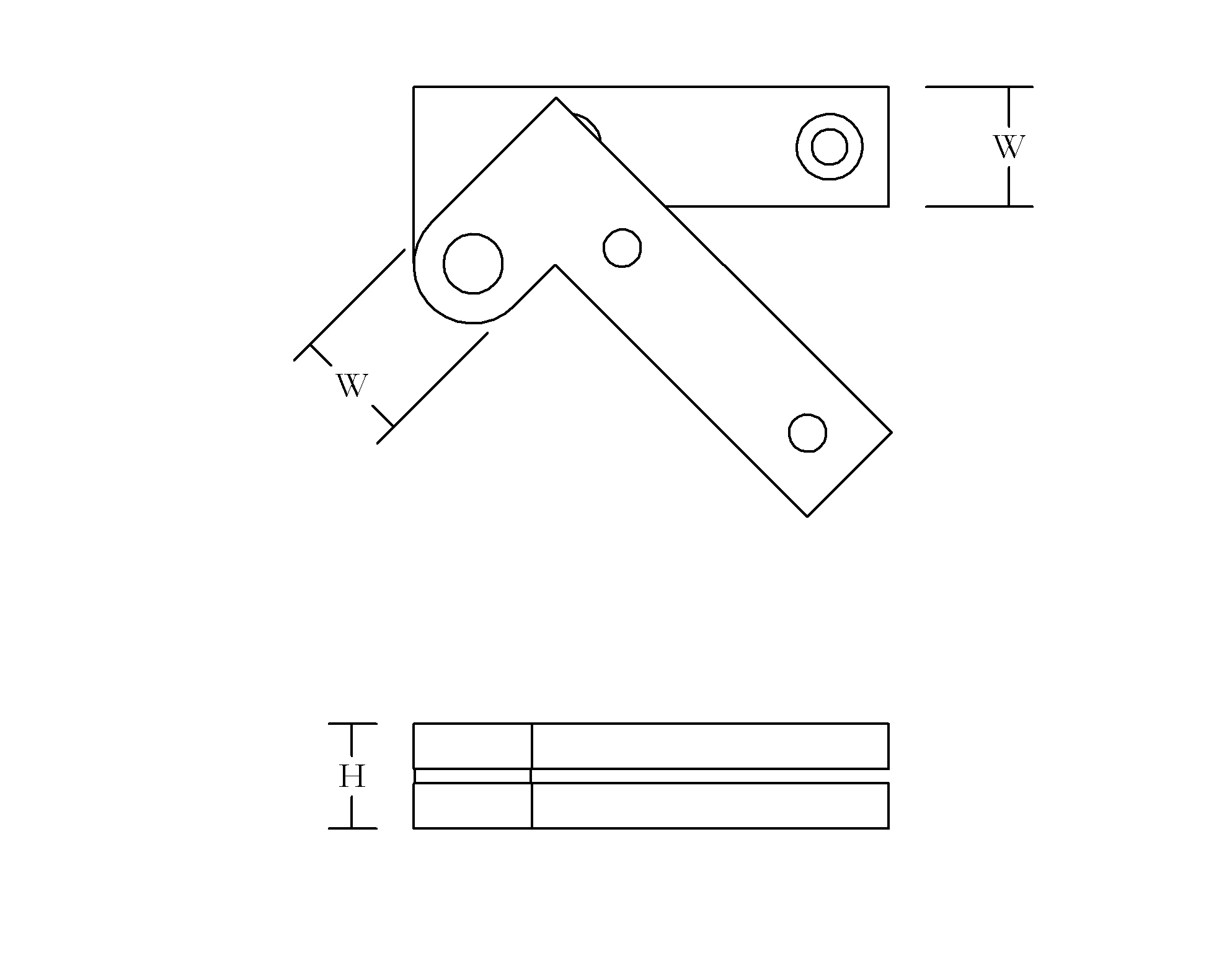

H Theophile Diagram HT0713.jpg

WIDTH HEIGHT LENGTH GAUGE
5/16" 5/16" 1-3/8" 1/8"
3/8" 5/16" 1-3/4" 1/8"
1/2" 7/16" 2" 3/16"
5/8" 5/8" 2-1/2" 1/4"
3/4" 3/4" 3-1/4" 5/16"
3/4" 13/16" 5" 3/8"
