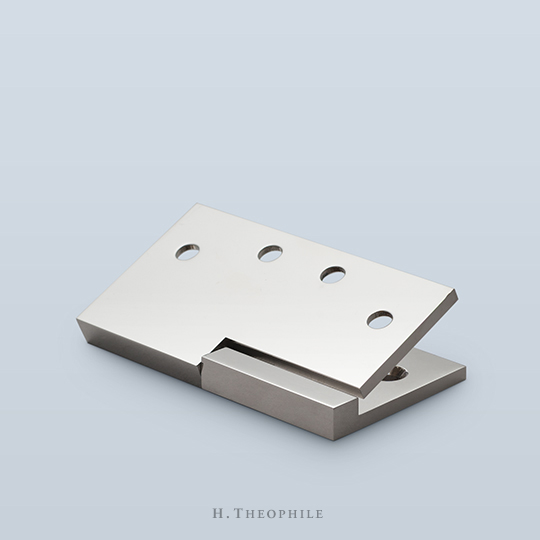

The HT0248 square paumelle is a standard, more economical lift-off hinge with a fixed stainless steel pin and concealed bearings. The hinges have a minimal gap between the leaves of 0.040" when in the closed position. See HT0221 for the premium square paumelle with the 1/8" reveal.

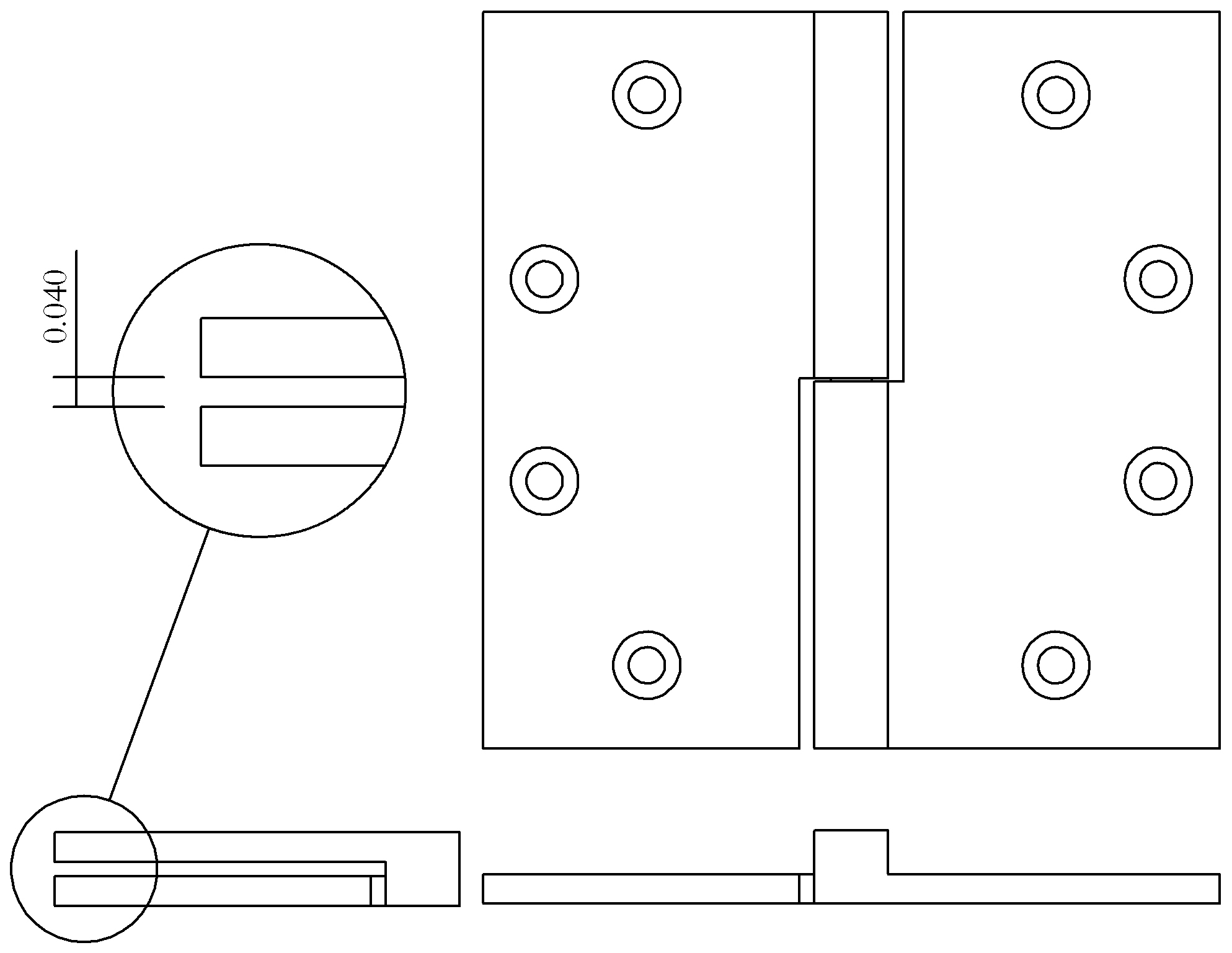

H Theophile Diagram HT0248.jpg

LEAF HT. WIDTH KNUCKLE LEAF
3-1/2" 3-1/2" .4" .18"
4" 4" .4" .18"
4-1/2" 4" .4" .18"
4-1/2" 4-1/2" .4" .18"
5" 4" .4" .18"
5" 4-1/2" .4" .18"
5" 5" .4" .18"
