HT7130-HT6710

◀   BACK TO CATALOG

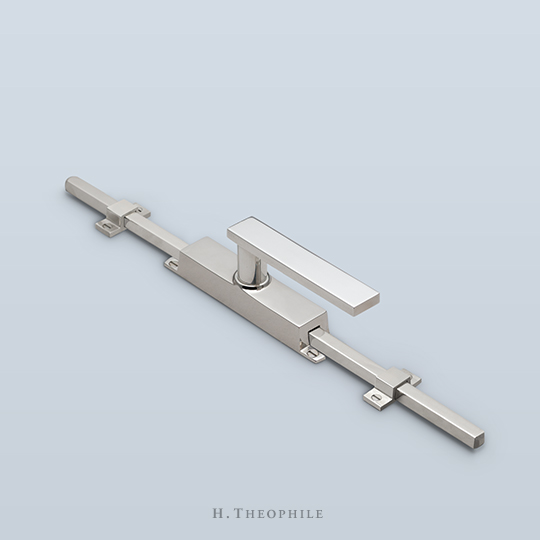

The HT7130 cremone features a slim, minimalist housing and is typically used to lock french doors and casement windows. It is shown here paired with the HT6710 lever and the HT7051 rod guides. Several strike options and rod lengths are available and specified to suit each specific application. All cremone trims are available in standard and custom finishes.

Rod guide dimension: 1-1/8" width x 1-3/16" length
Rod dimension: 3/8" x 3/8"
Throw: 1/2"
Handle rotation: 90 degrees

Available in all finishes.

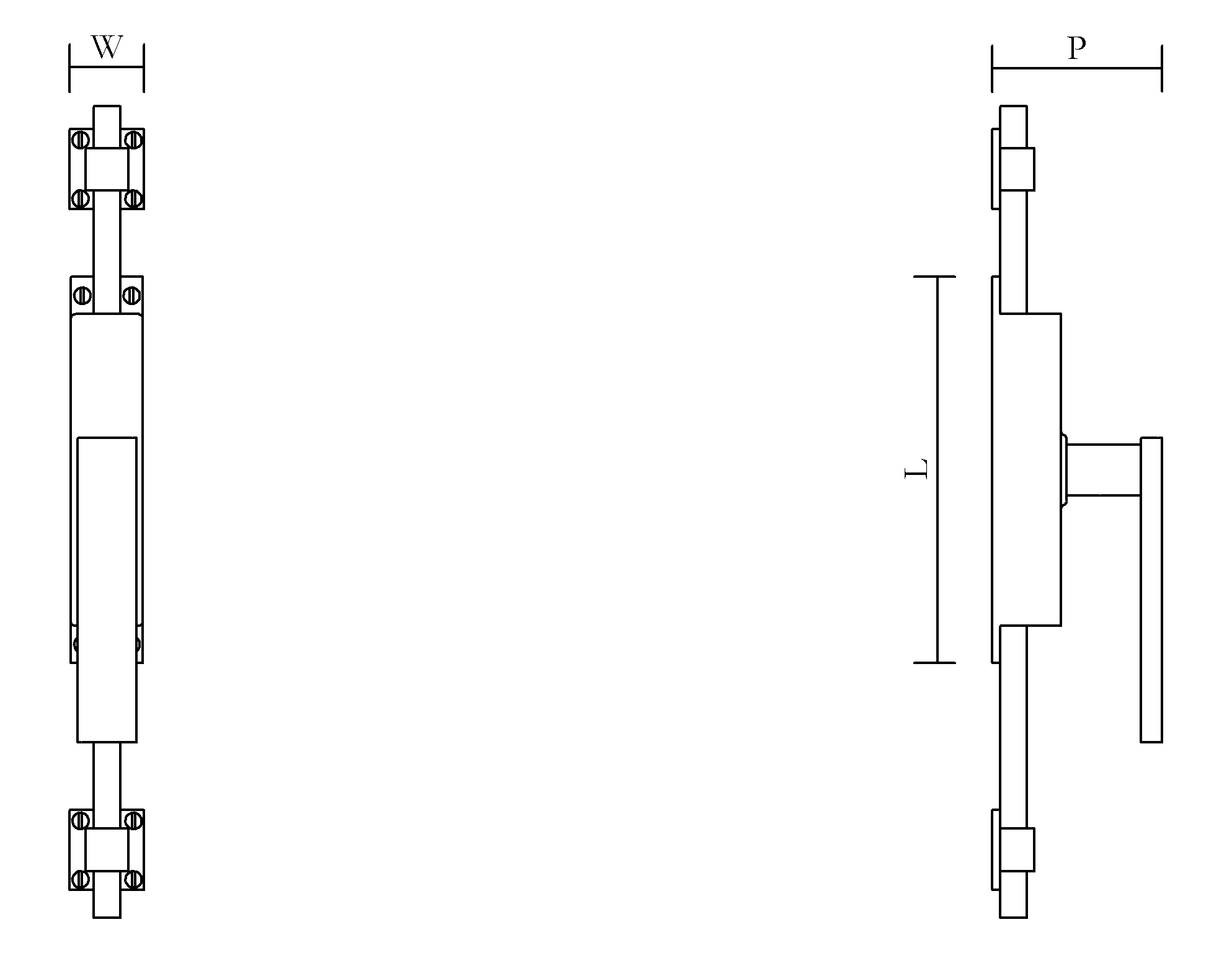

H Theophile Diagram HT7130-HT6710.jpg

BOX                L x W HANDLE LENGTH PROJECTION
5-11/16" x 1-1/16" 3-7/8" overall 2-5/8"
