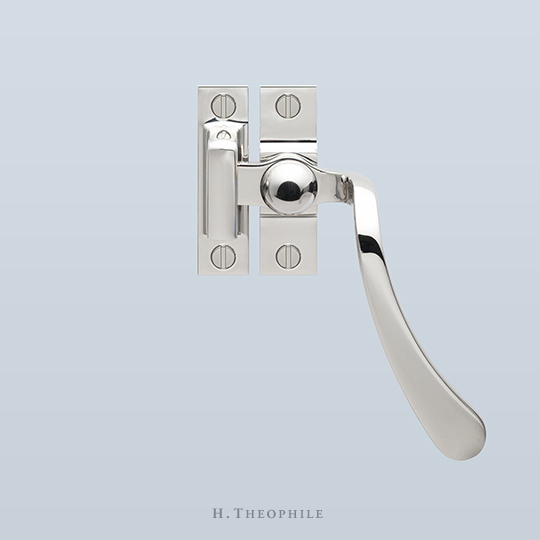

The HT7222 is a casement fastener for hinged casement windows which features a flattened, offset lever. It can be custom finished to suit project requirements.

Shown here with a surface-mounted strike. Also available with a mortise strike upon request. Please specify handing when ordering.

Base plate dimension: 2-3/8" x 11/16"
Strike plate dimension: 2-3/8" x 5/8"

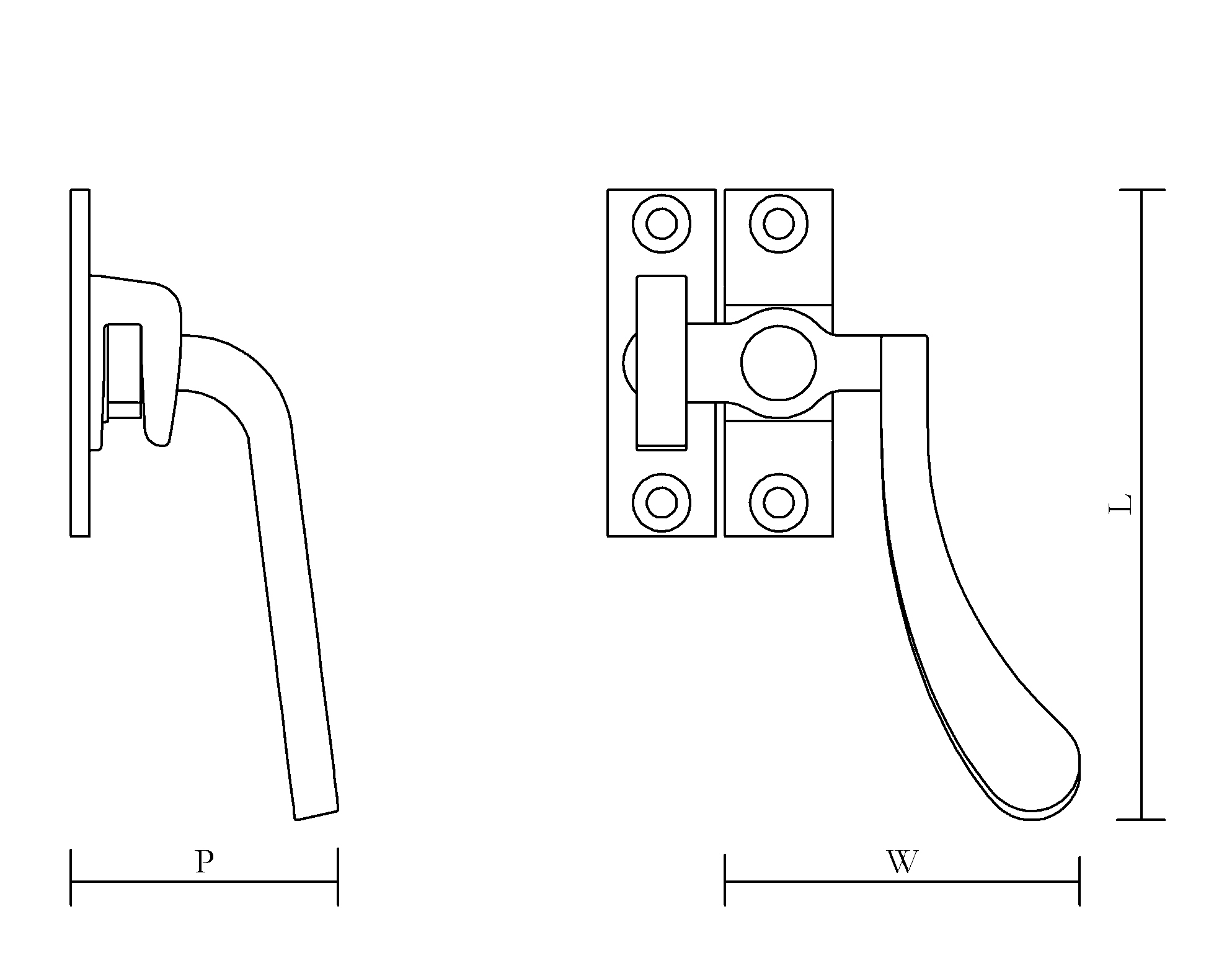

H Theophile Diagram HT7222.jpg

LENGTH (L) WIDTH (W) PROJECTION (P)
4-1/4" 2-7/8" 1-7/8"
