HT7255-HT4099

The HT7255 cremone features a simple housing with finished screws and is typically used to lock french doors and casement windows. It is shown here paired with the HT4099 knob and the HT7049 rod guides. Several strike options and rod lengths are available and specified to suit each specific application. All cremone trims are available in standard and custom finishes.

Rod guide dimension: 1-1/4" width x 13/16" length
Rod dimension: 11/16" x 1/4"
Throw: 1/2"
Handle rotation: 180 degrees

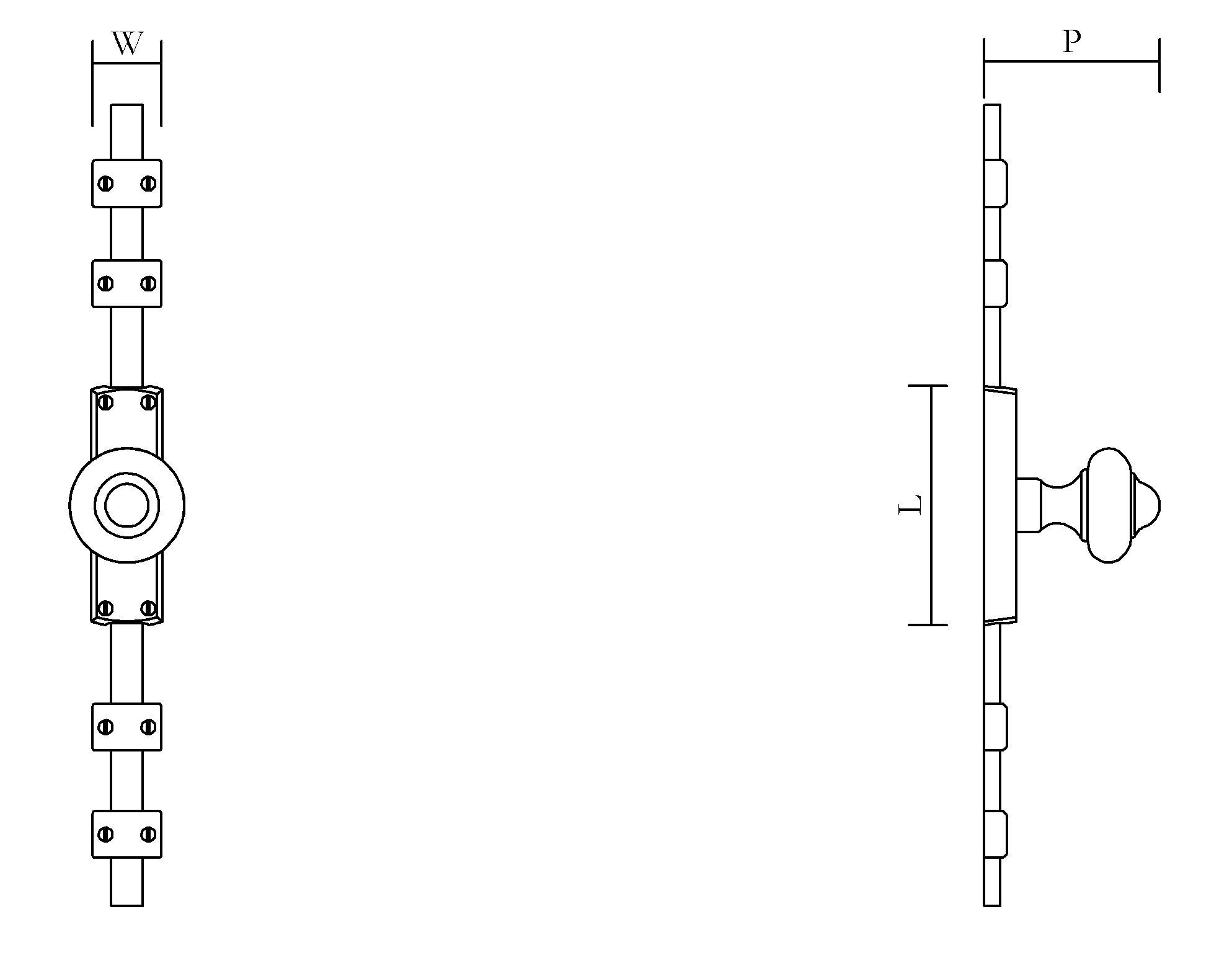

H Theophile Diagram HT7255-HT4099.jpg

BOX                L x W HANDLE PROJECTION
4-1/4" x 1-1/4" 2" dia. 3"
