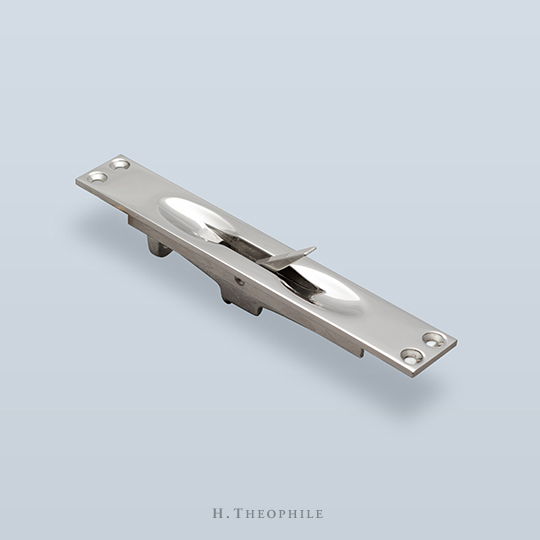

The HT7600 flush bolt has standard lever extension flush bolts that extend through the top edge of the door, and through the bottom edge.

Please specify length of bolt required for a specific door application (6", 9", 12", 18", 24", 30", 36", 48"). Only the 6", 9", 12" & 24" rod lengths are UL listed for fire doors. It can be specified with a separate rabbet piece if needed; specify when ordering.

Throw: 3/4" with a 7/8" vertical adjustment

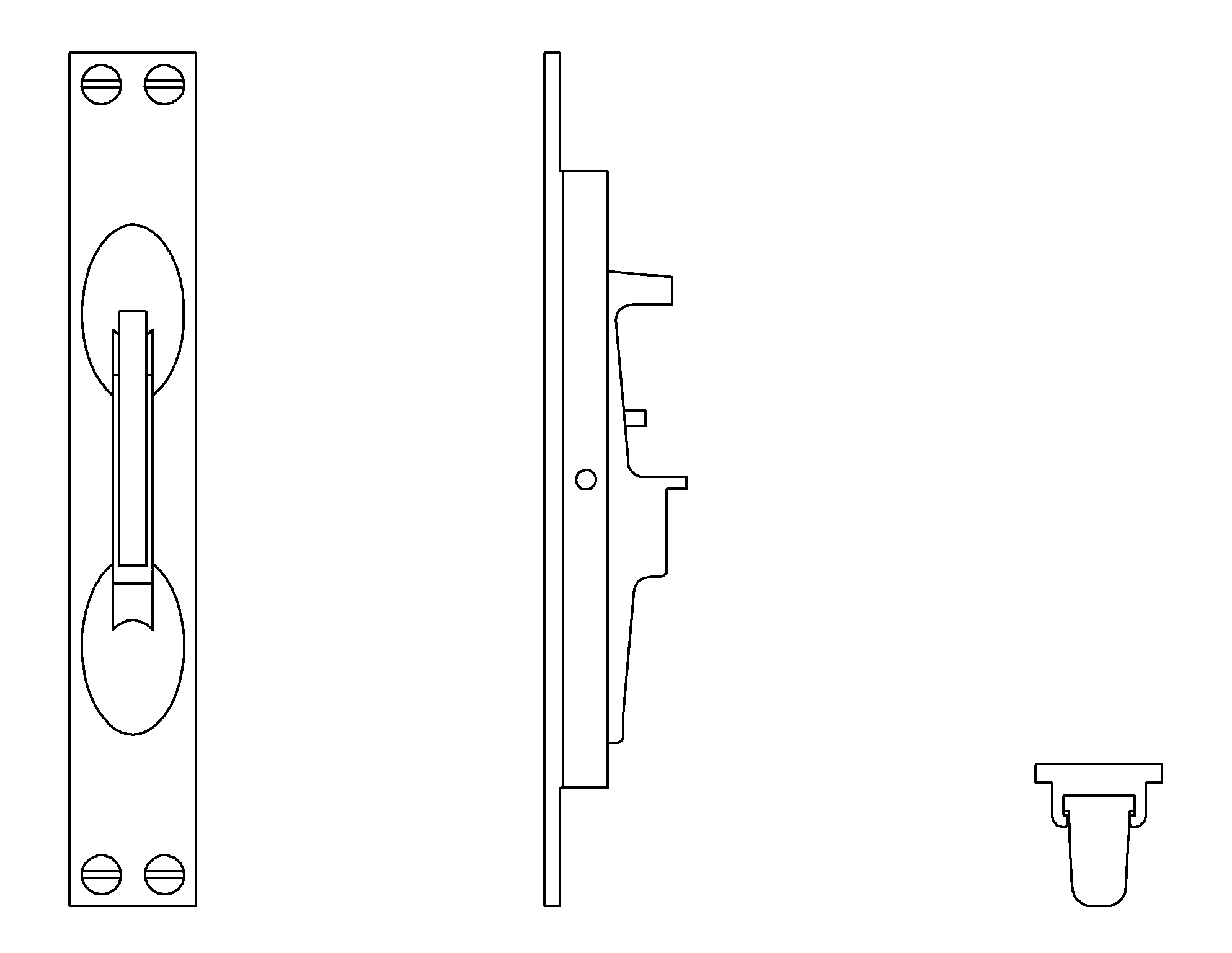

H Theophile Diagram HT7600.jpg

HEIGHT WIDTH DEPTH
6-3/4" 1" 1-3/16"
