HA8825

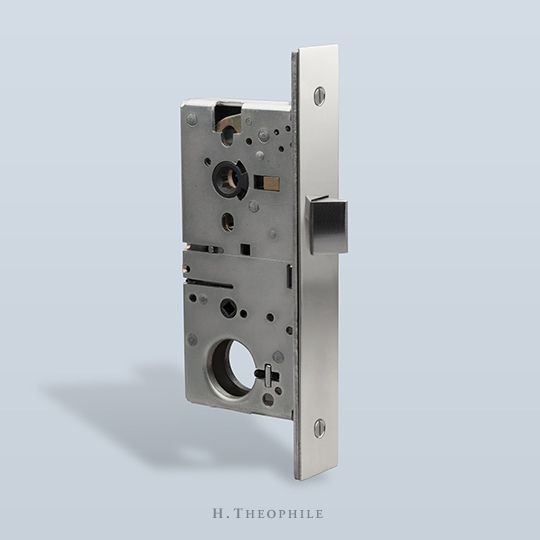

The HA8825 narrow-backset passage mortise lockset can be used with knobs and levers.

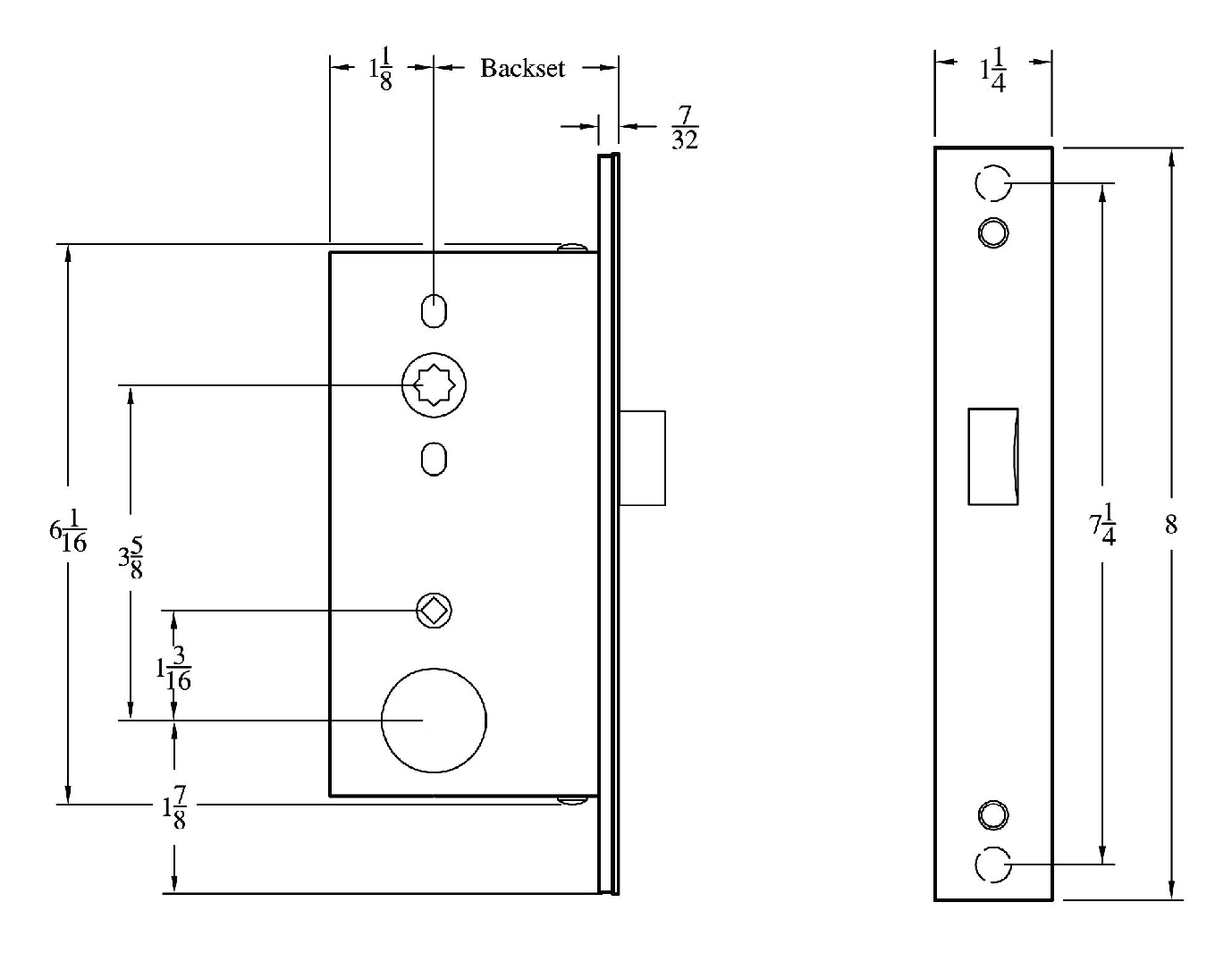

Specify orientation as knob-above-latch (as shown) or knob-below-latch. Armor front features an adjustable bevel, and rabbet kits are available upon request. Lock can be UL-listed 3 hours (R13846) with knob-under-latch orientation only, and with backsets of 1-3/4" and above.
Available in all finishes.
| BACKSET | TOTAL DEPTH | BODY THICKNESS |
|---|---|---|
| 1-1/2" | 2-5/8" | 15/16" |
| 1-3/4" | 2-7/8" | 15/16" |
| 2" | 3-1/8" | 15/16" |
| 2-1/4" | 3-3/8" | 15/16" |
