H. Theophile - Since 1882

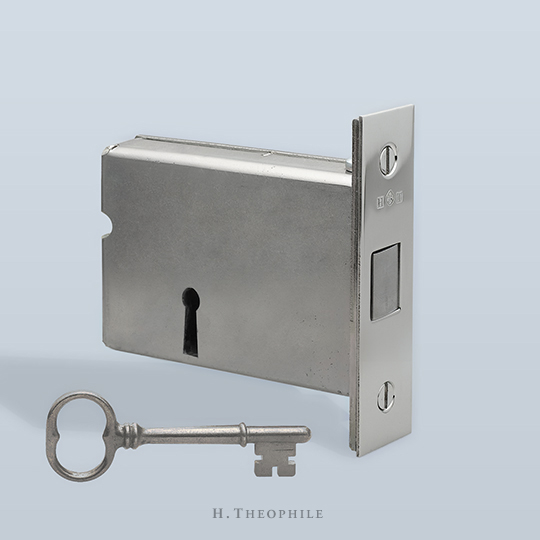

The HA9500 interior mortise deadbolt lockset utilizes a skeleton key to throw the bolt.

Armor front features an adjustable bevel, and rabbet kits are available upon request.

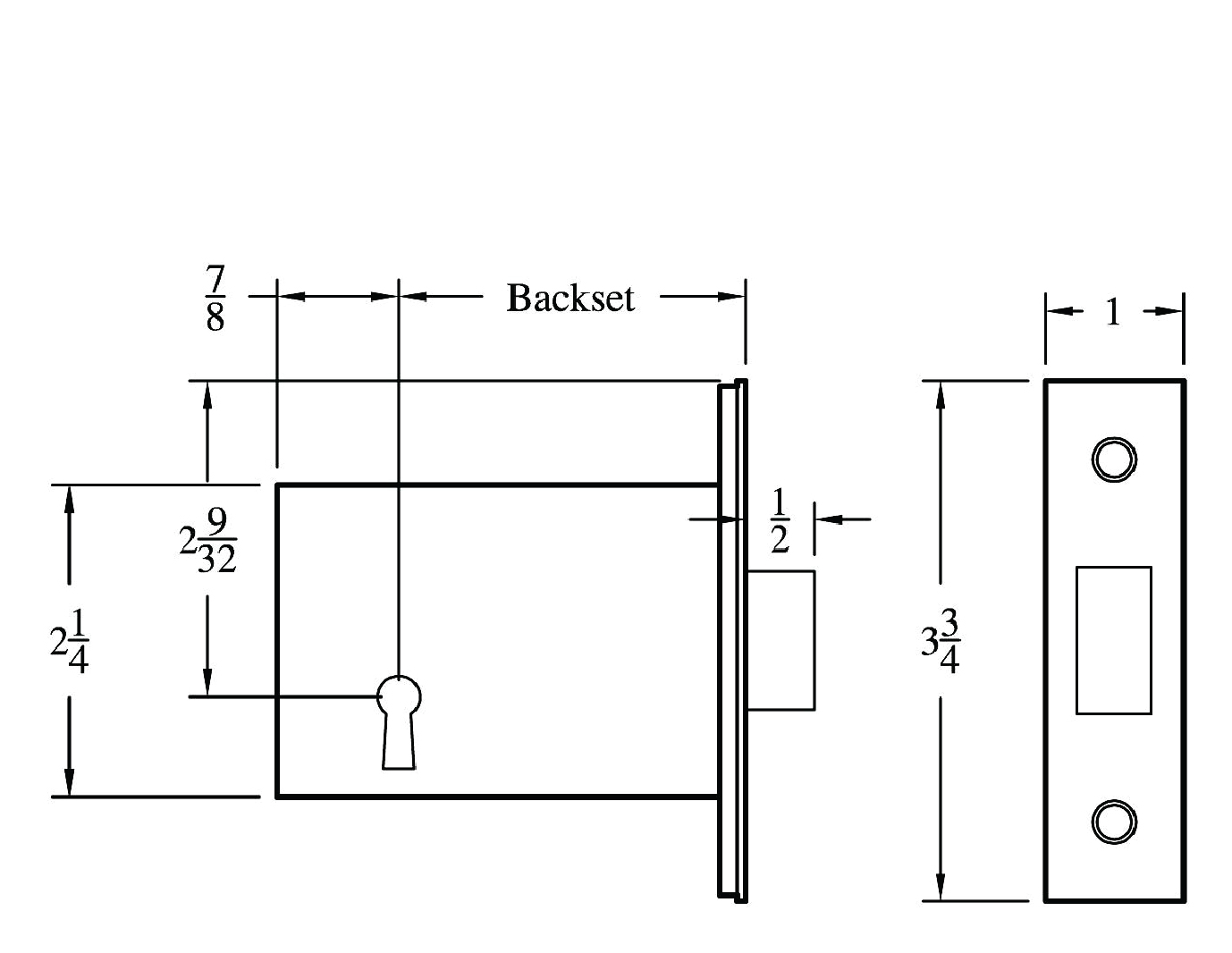

H Theophile Diagram HA9500.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
1-3/4" 2-5/8" 3/4"
2" 2-7/8" 3/4"
2" 2-7/8" 3/4"
2-1/2" 3-3/8" 15/16"
2-3/4" 3-5/8" 3/4"
HA9503
HA9524
HA9824
