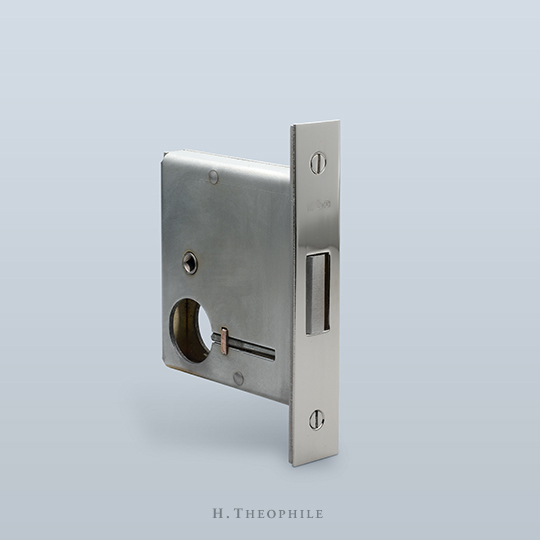

The HA9503 mortise deadbolt is lockable by a thumbturn and a keyed mortise cylinder. UL-Listed 3 hour (R27779-20130717).

Armor front features an adjustable bevel, and rabbet kits are available upon request.

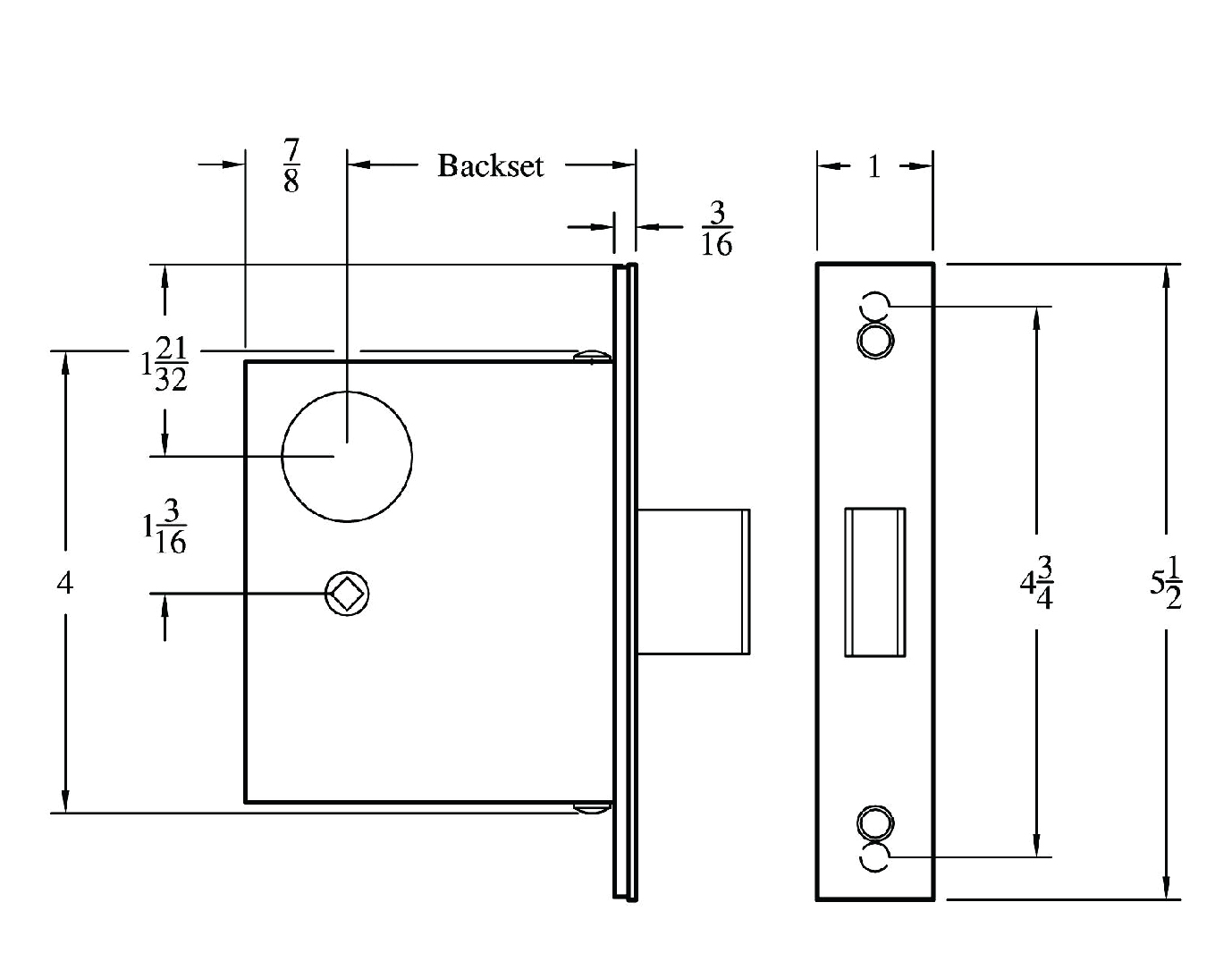

H Theophile Diagram HA9503.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2-1/2" 3-3/8" 3/4"
2-3/4" 3-5/8" 3/4"
3-3/4" 4-5/8" 3/4"
5" 5-7/8" 3/4"
6" 6-7/8" 3/4"
HA9500
