HT0201-HT0980

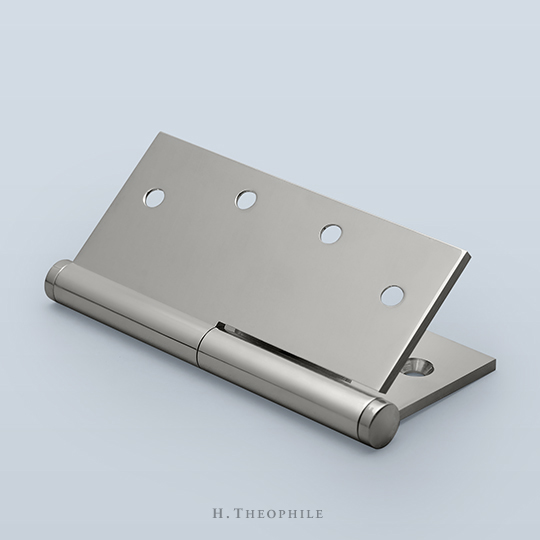

The HT0201 round paumelle is a premium lift-off hinge with a fixed stainless steel pin and concealed bearings. Shown here with button finial HT0980. Other sizes and finial designs are available.

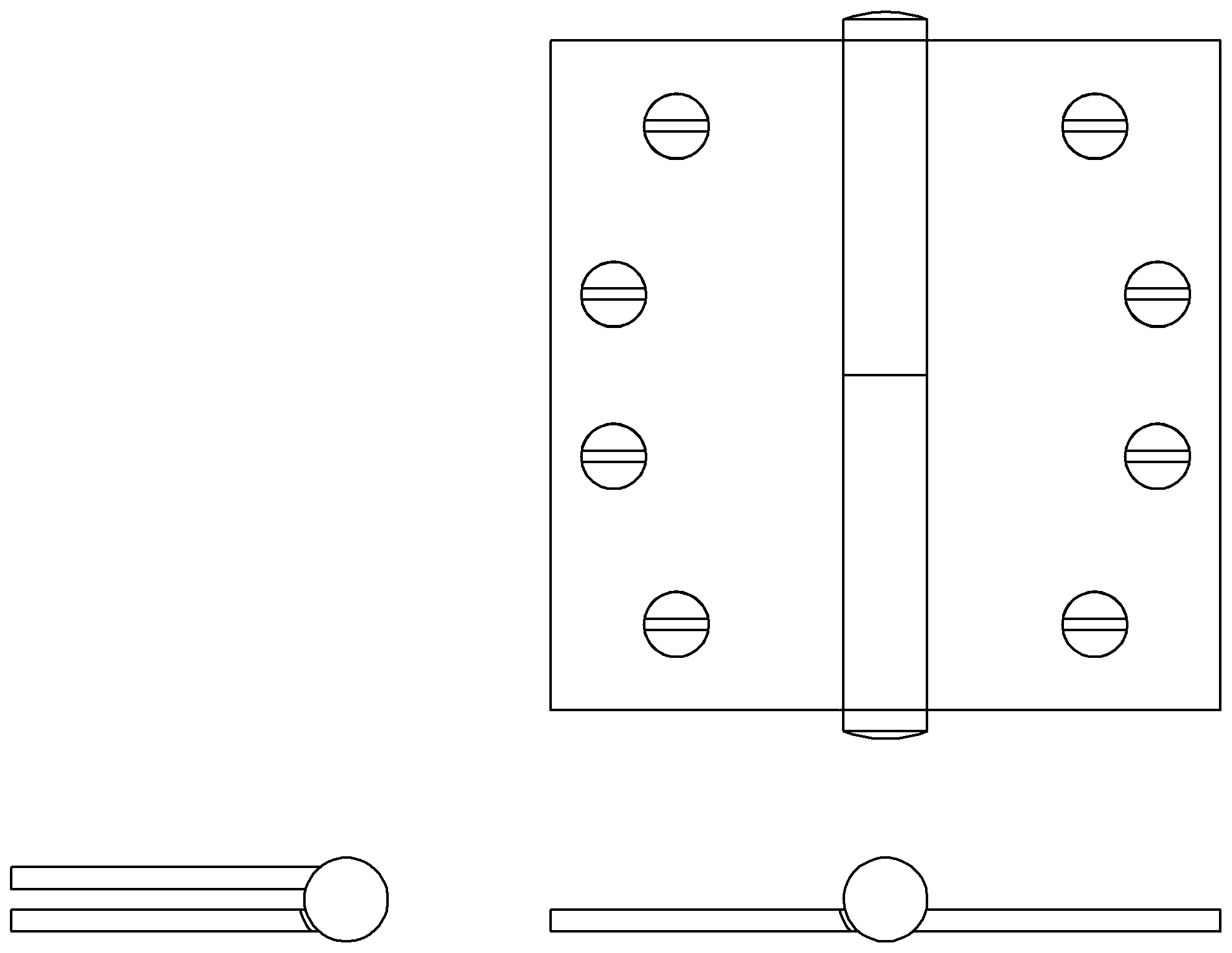

H Theophile Diagram HT0201-HT0980.jpg

LEAF HT. WIDTH KNUCKLE LEAF
3-1/2" 3-1/2" 1/2" .123"
4" 3-1/2" 1/2" .123"
4" 4" 1/2" .13"
4-1/2" 4" 1/2" .13"
4-1/2" 4-1/2" 9/16" .135"
5" 4" 9/16" .135"
5" 4-1/2" 9/16" .135"
5" 5" 9/16" .146"
6" 6" 5/8" .165"
HT0201-
HT0901
HT0201-
HT0910
HT0201-
HT0920
HT0201-
HT0940
HT0203-
HT0950
HT0214c-
HT0960
