HT0203-HT0950

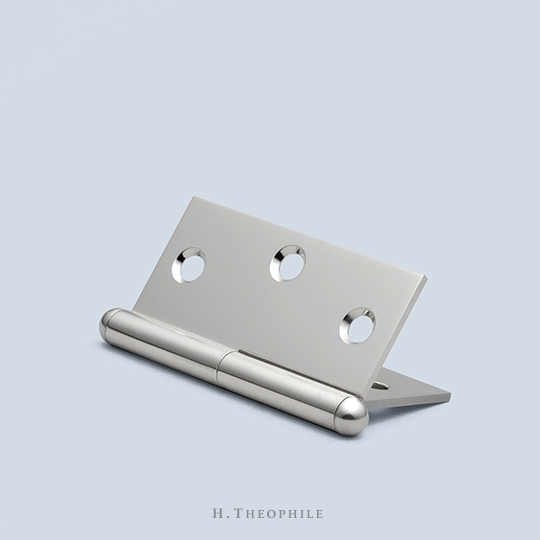

The HT0203 round paumelle is a premium lift-off cabinet hinge manufactured from solid brass extrusion with a fixed stainless steel pin. Shown here with bullet finial HT0950. Other finial designs are also available.

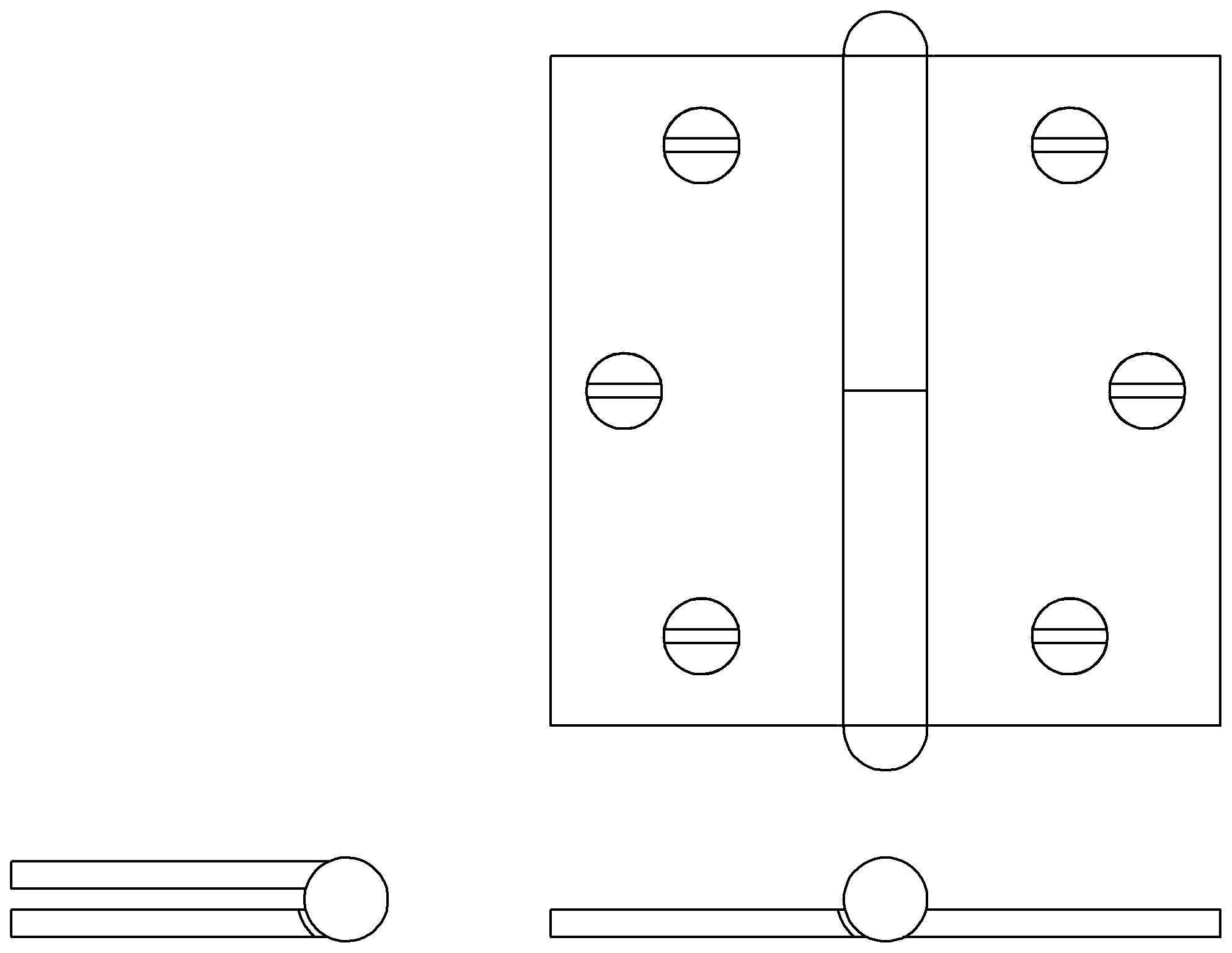

H Theophile Diagram HT0203-HT0950.jpg

LEAF HT. WIDTH KNUCKLE LEAF
2" 1-3/4" 5/16" .09"
2" 2" 5/16" .09"
2-1/2" 1-3/4" 5/16" .09"
2-1/2" 2" 5/16" .09"
2-1/2" 2-1/2" 5/16" .092"
3" 2" 5/16" .09"
3" 2-1/2" 5/16" .092"
3" 3" 3/8" .092"
