HT0207-HT2511

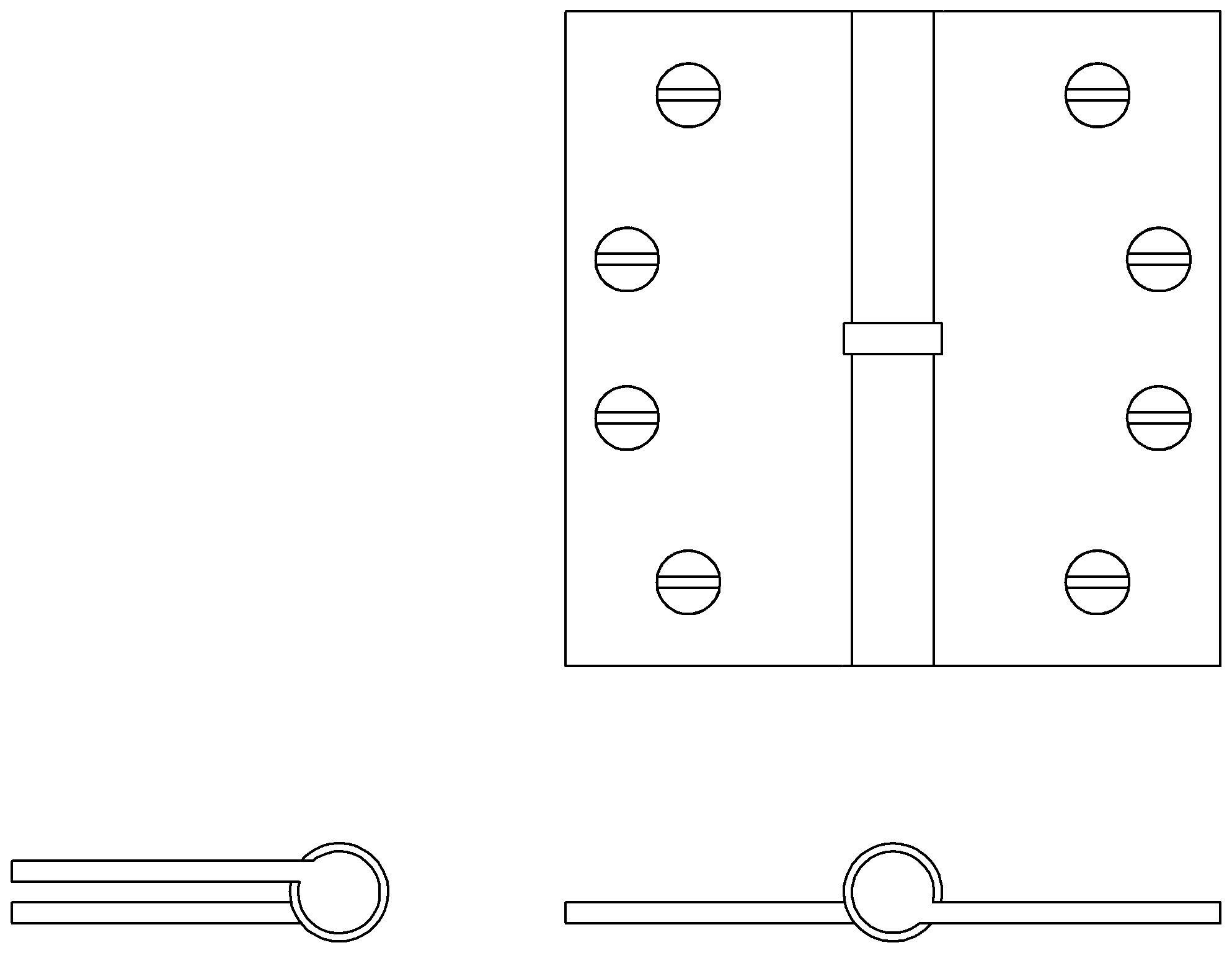

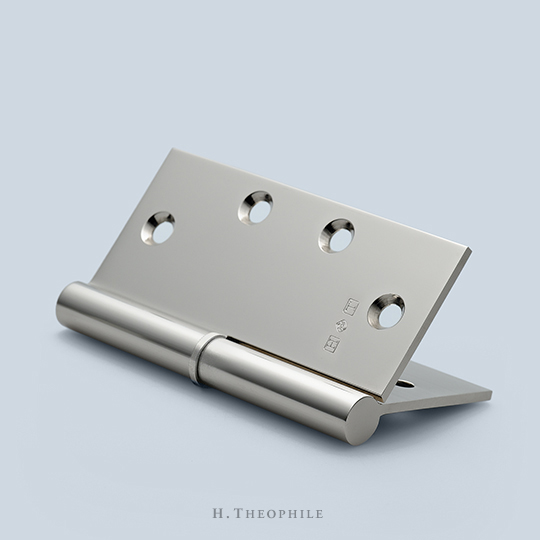

The HT0207 round paumelle is a premium lift-off hinge with a fixed stainless steel pin and concealed bearings. Shown here with flat, raised washer HT2511. Other sizes and washer designs are available.
Available in all finishes.
| LEAF HT. | WIDTH | KNUCKLE | LEAF |
|---|---|---|---|
| 3-1/2" | 3-1/2" | 1/2" | .123" |
| 4" | 3-1/2" | 1/2" | .123" |
| 4" | 4" | 1/2" | .13" |
| 4-1/2" | 4" | 1/2" | .13" |
| 4-1/2" | 4-1/2" | 9/16" | .135" |
| 5" | 4" | 9/16" | .135" |
| 5" | 4-1/2" | 9/16" | .135" |
| 5" | 5" | 9/16" | .146" |
| 6" | 6" | 5/8" | .165" |
