HT0209-HT2511

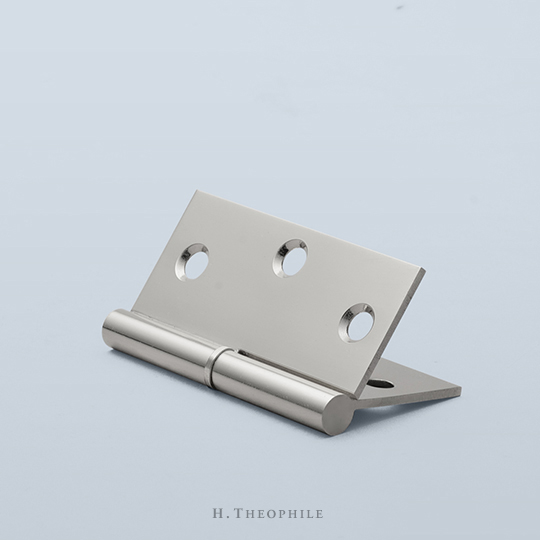

The HT0209 round paumelle is a premium lift-off cabinet hinge manufactured from solid brass extrusion with a fixed stainless steel pin. Shown here with flat, raised washer HT2511. Other washer designs are also available.

Available in all finishes.

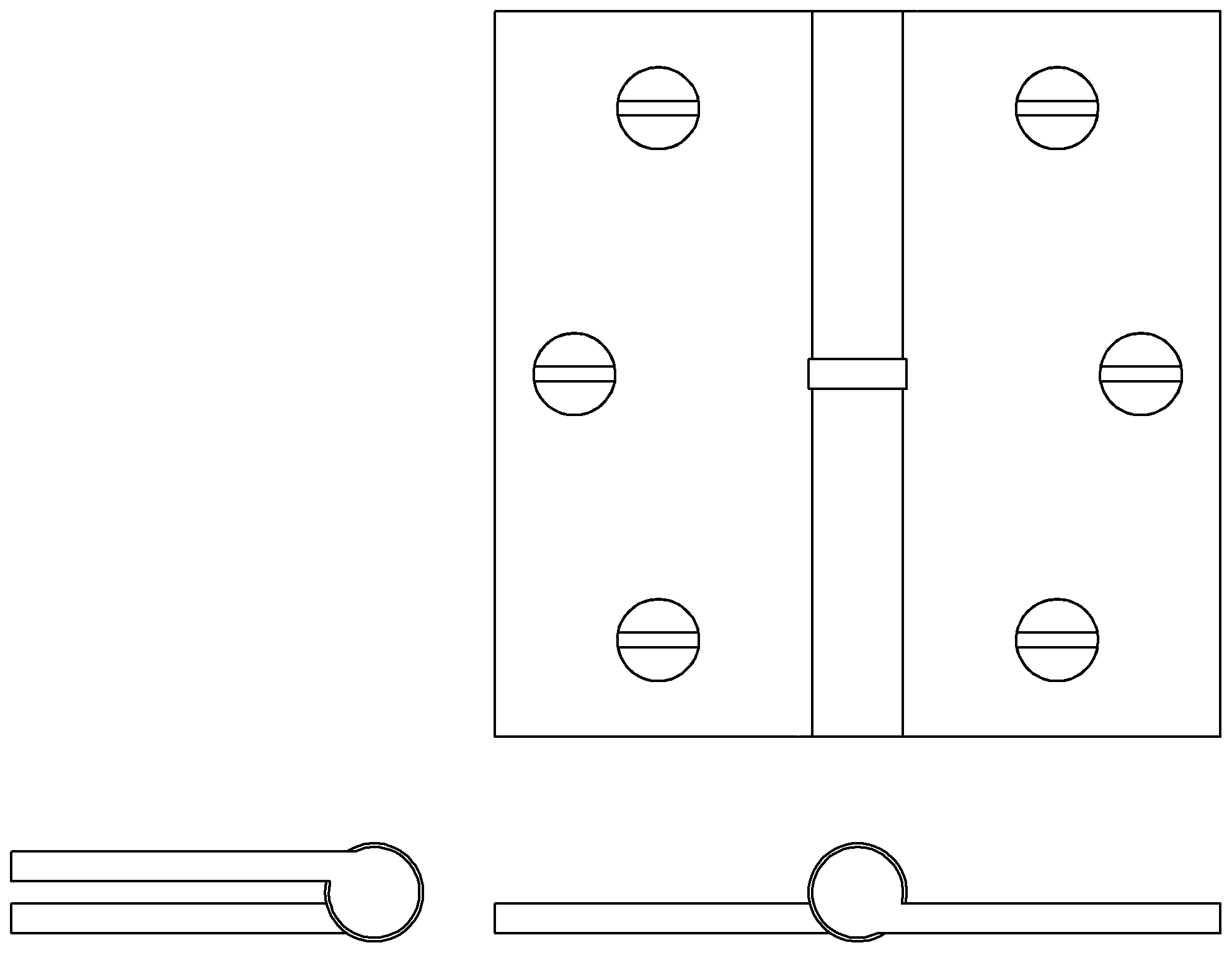

H Theophile Diagram HT0209-HT2511.jpg

LEAF HT. WIDTH KNUCKLE LEAF
2" 1-3/4" 5/16" .09"
2" 2" 5/16" .09"
2-1/2" 1-3/4" 5/16" .09"
2-1/2" 2" 5/16" .09"
2-1/2" 2-1/2" 5/16" .092"
3" 2" 5/16" .09"
3" 2-1/2" 5/16" .092"
3" 3" 3/8" .092"
