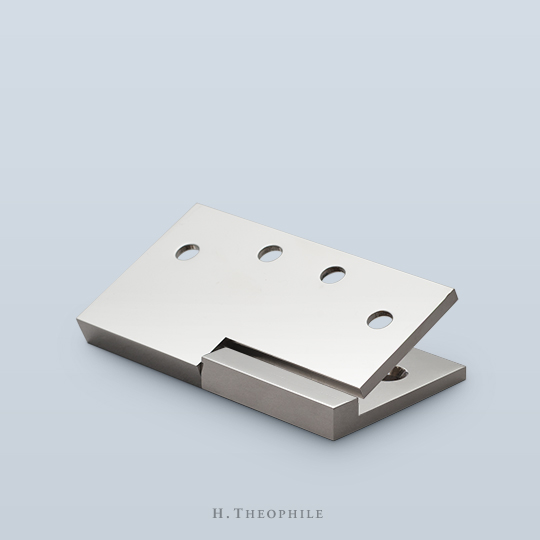

H. Theophile's HT0221 premium square paumelle lift-off hinge is engineered to sit squarely in door jamb reveals of 1/8". Features a fixed stainless steel pin and concealed bearings. See HT0248 for the standard square paumelle with a 0.040" gap between hinge leafs, a more economical option.

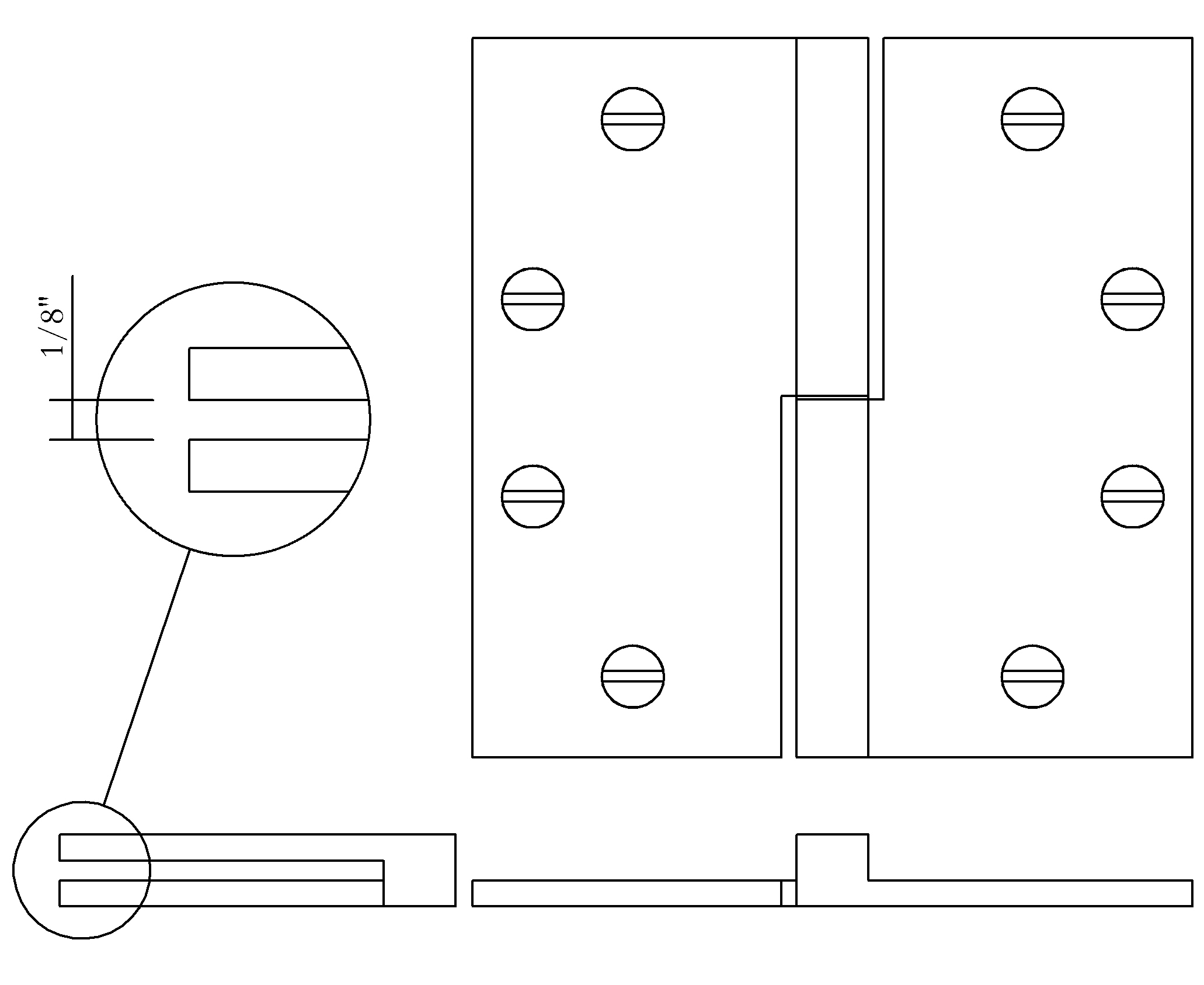

H Theophile Diagram HT0221.jpg

LEAF HT. WIDTH KNUCKLE LEAF
3-1/2" 3-1/2" .4" .138"
4" 4" .4" .138"
4-1/2" 4" .45" .163"
4-1/2" 4-1/2" .45" .163"
5" 4" .45" .163"
5" 4-1/2" .45" .163"
5" 5" .45" .163"
