HT0409-HT0910

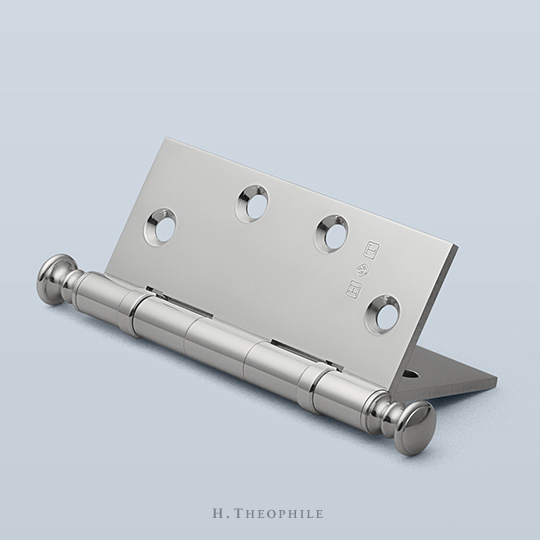

The HT0409 is a premium two ball-bearing butt hinge. Shown here with HT0910 barrel finials and HT2519 flat, raised bearings which are widely-spaced (by special request only). Other sizes, finials, and bearing designs are available.

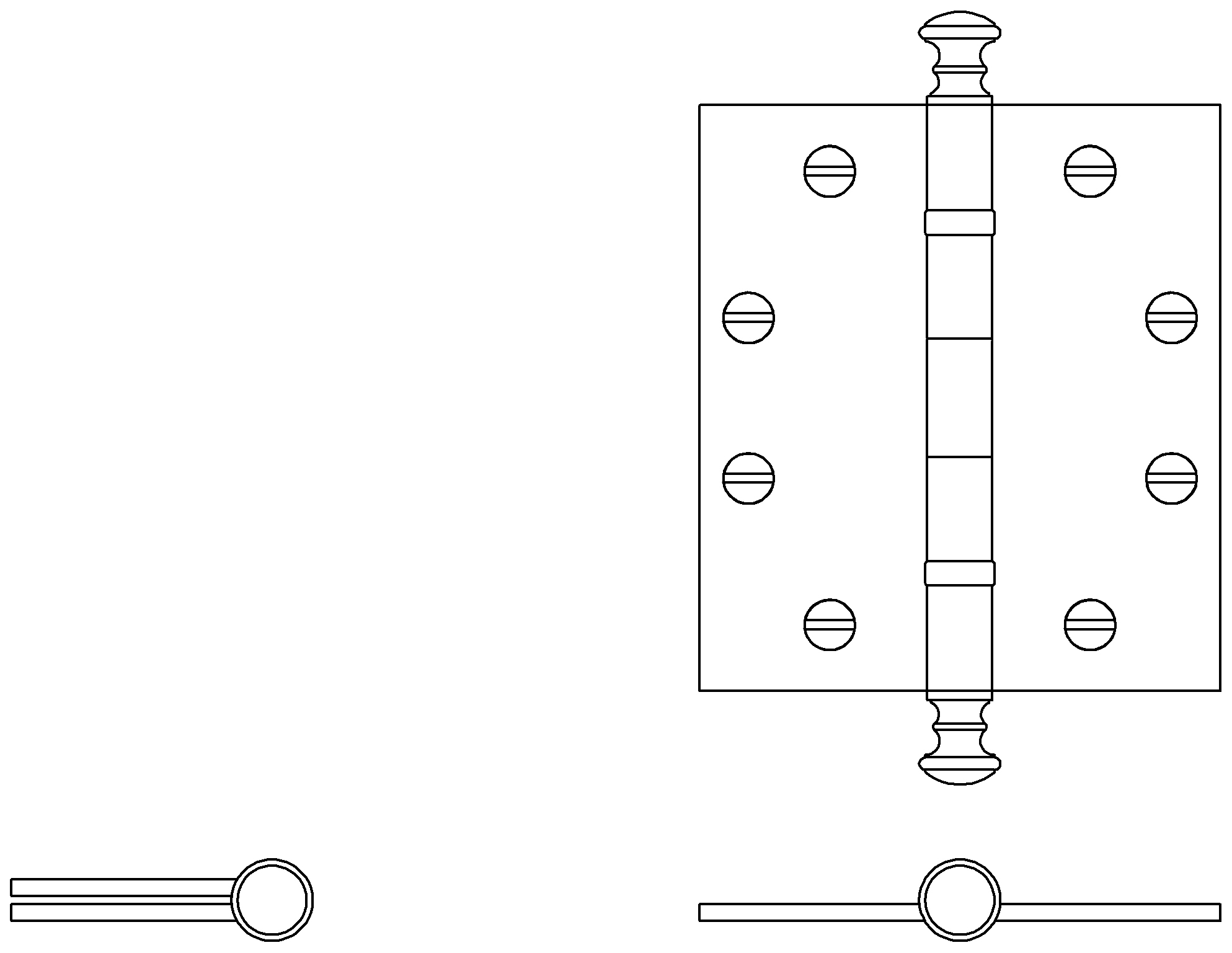

H Theophile Diagram HT0409-HT0910.jpg

LEAF HT. WIDTH KNUCKLE LEAF
3-1/2" 3-1/2" 1/2" .123"
4" 3-1/2" 1/2" .123"
4" 4" 1/2" .13"
4-1/2" 4" 1/2" .13"
4-1/2" 4-1/2" 9/16" .135"
5" 4" 9/16" .135"
5" 4-1/2" 9/16" .135"
5" 5" 9/16" .146"
6" 6" 5/8" .165"
