HT0533-HT2511

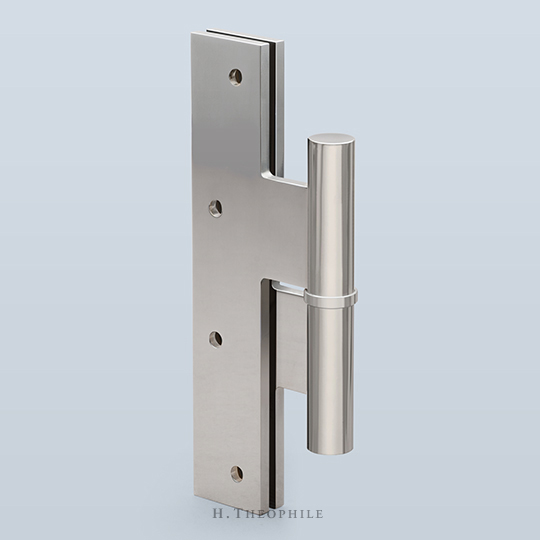

The HT0533 H-hinge is a premium round paumelle manufactured from solid brass extrusion with a fixed stainless steel pin and concealed bearing.

The elegant proportions of this design incorporate a widened hinge leaf and a staggered screw pattern that are both recommended for heavier doors. Shown here with flat washer HT2511. Other washer designs are also available.

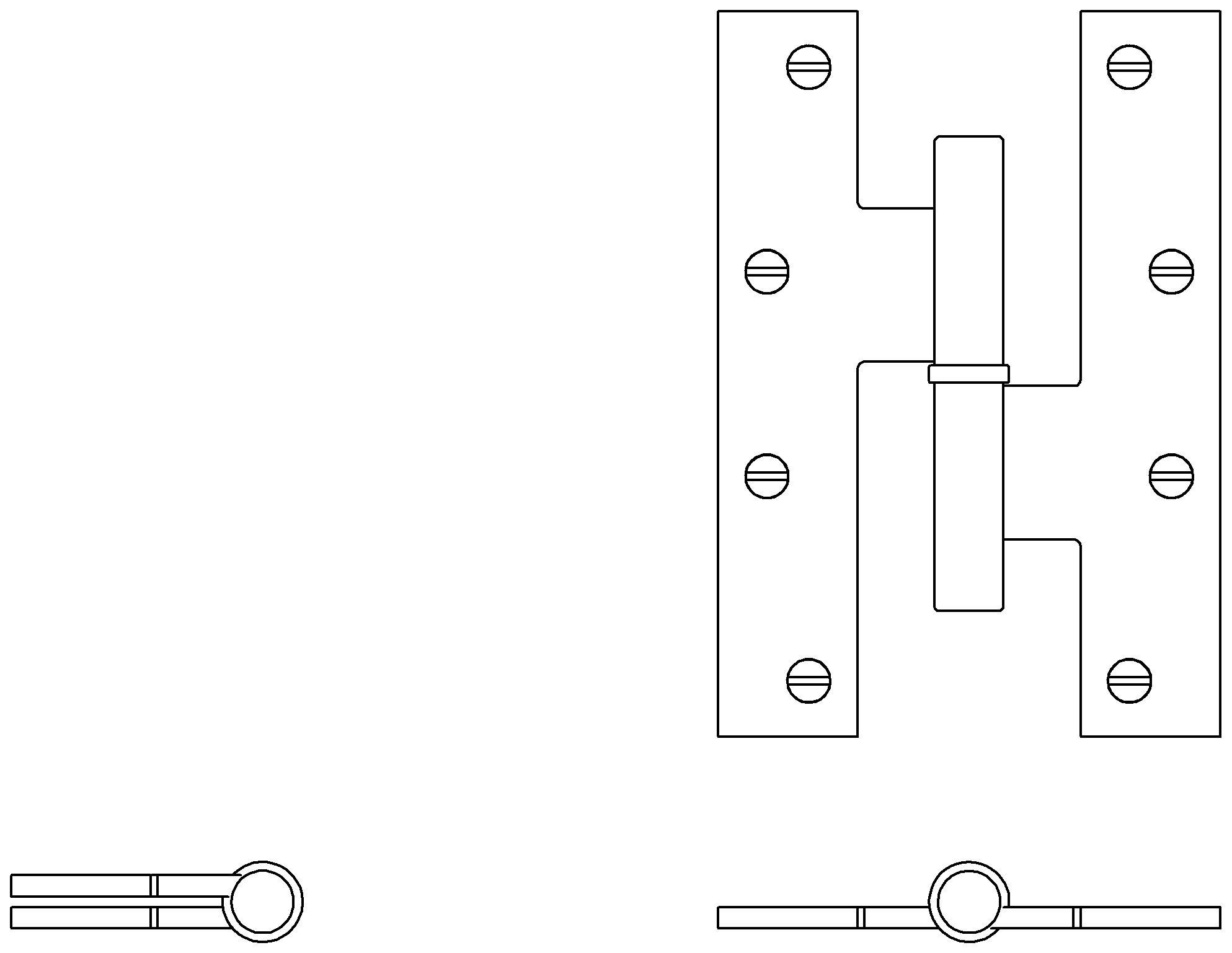

H Theophile Diagram HT0533-HT2511.jpg

LEAF HT. WIDTH KNUCKLE LEAF
6" 3-3/4" 5/8" .208"
6-1/2" 4" 5/8" .208"
6-1/2" 4-1/2" 5/8" .208"
