H. Theophile - Since 1882

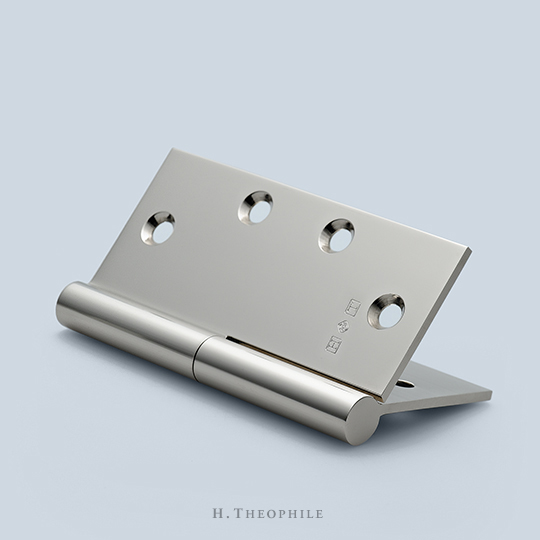

The HT0210 round paumelle is a premium lift-off hinge manufactured from solid brass extrusion with a fixed stainless steel pin and concealed bearing.

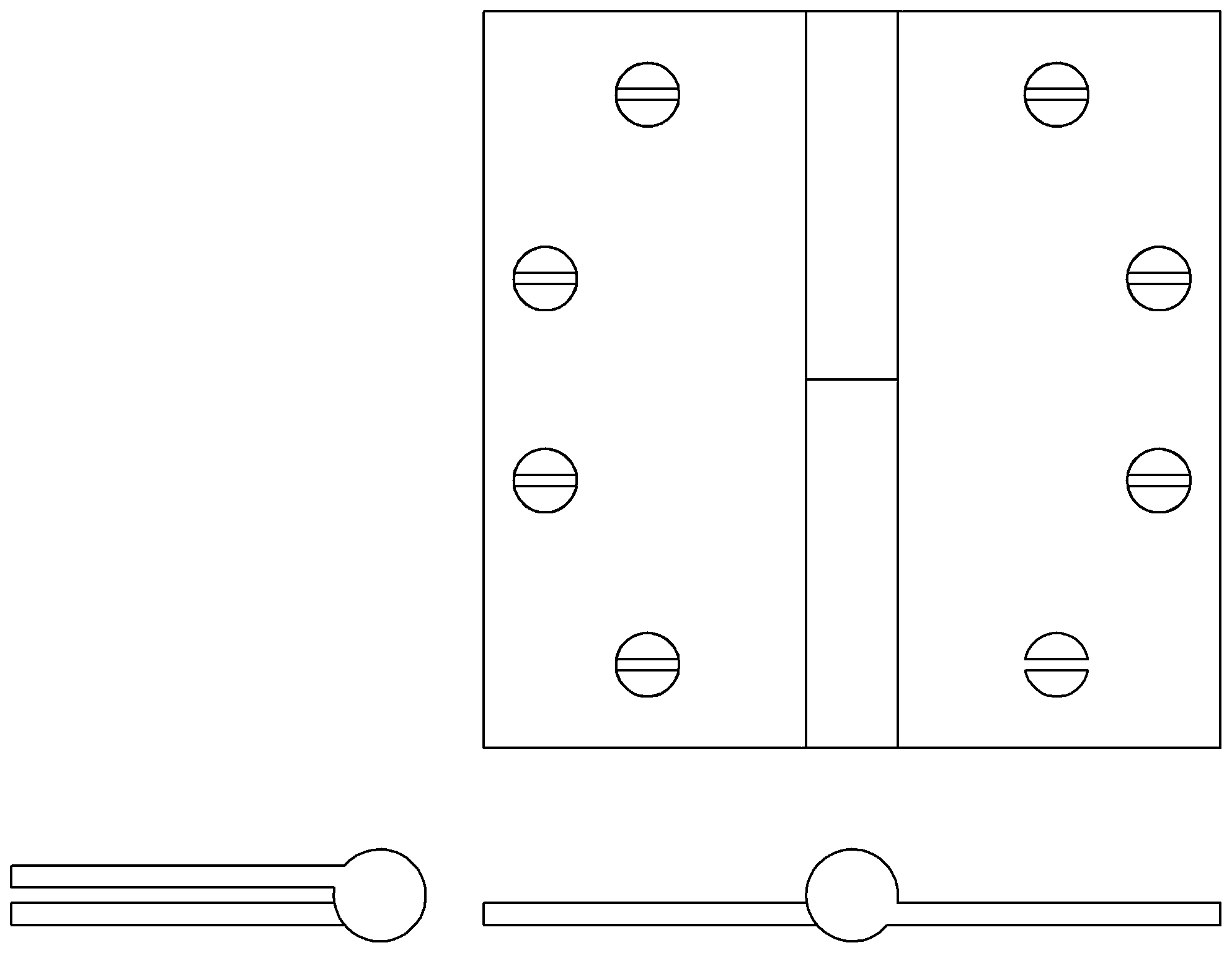

H Theophile Diagram HT0210.jpg

LEAF HT. WIDTH KNUCKLE LEAF
3-1/2" 3-1/2" 1/2" .123"
4" 4" 1/2" .13"
4-1/2" 4" 9/16" .135"
4-1/2" 4-1/2" 9/16" .135"
5" 5" 9/16" .146"
6" 6" 5/8" .165"
HT0211
HT0212
