HT5700-HT3190v

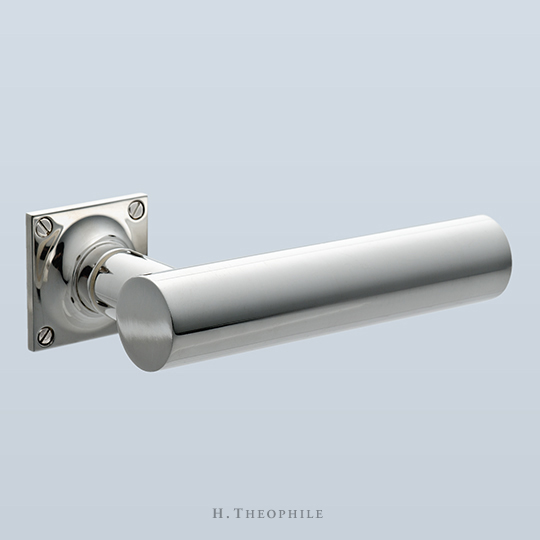

The clean modern design of the HT5700 pipe lever is distinguished by its scale and proportions.

The 5" lever is shown here with a 1-1/2" square backplate. See HT3190v for additional backplate information.

See HT5600 for coordinating T-pull sizes.

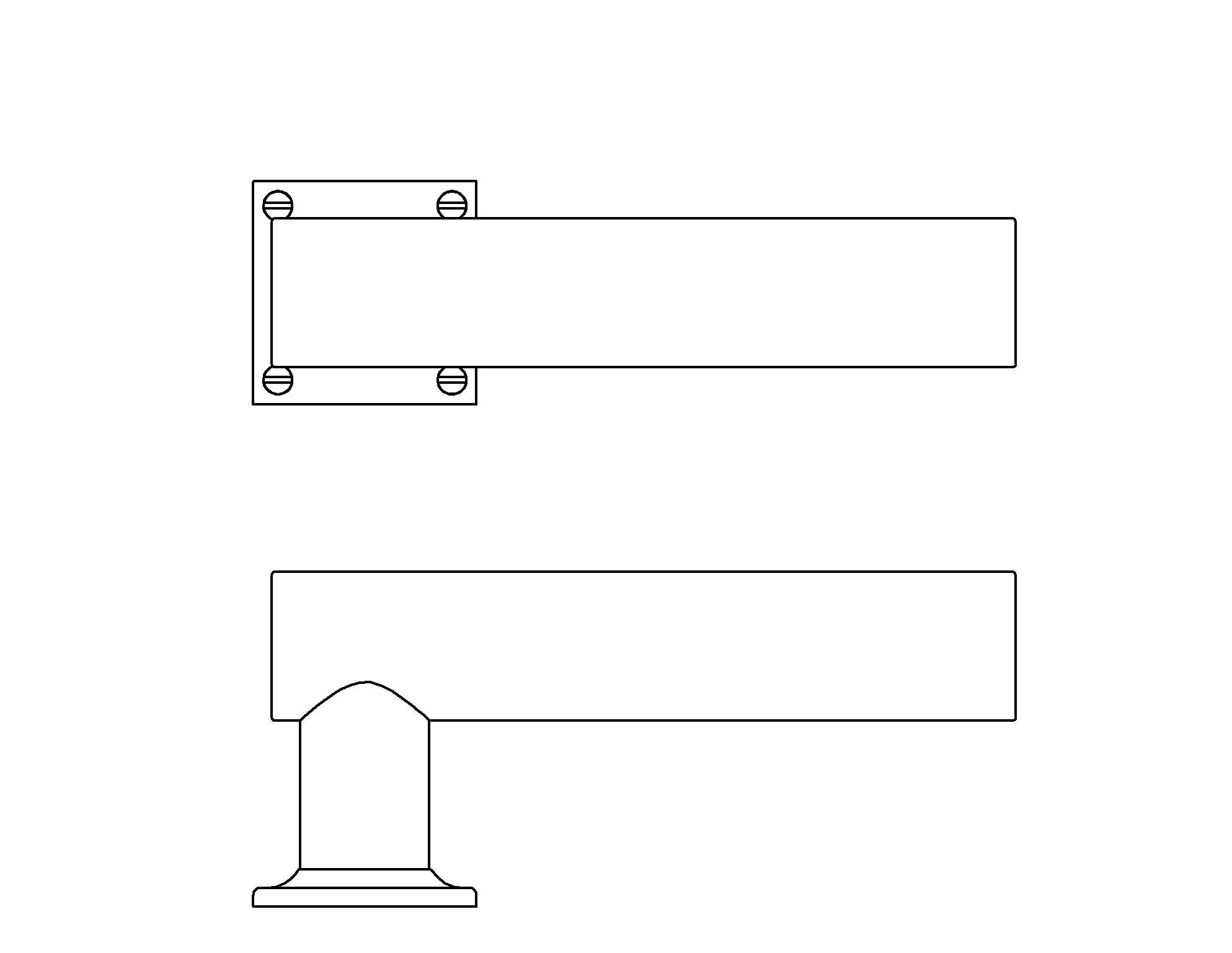

H Theophile Diagram HT5700-HT3190v.jpg

LEVER LENGTH BACKPLATE PROJECTION
3-3/4" overall 1-1/2" square 2-1/4"
4" overall 1-1/2" square 2-1/4"
4-1/4" overall 1-1/2" square 2-1/4"
4-1/2" overall 1-1/2" square 2-1/4"
4-3/4" overall 1-1/2" square 2-1/4"
5" overall 1-1/2" square 2-1/4"
