HT6003-HT3190v

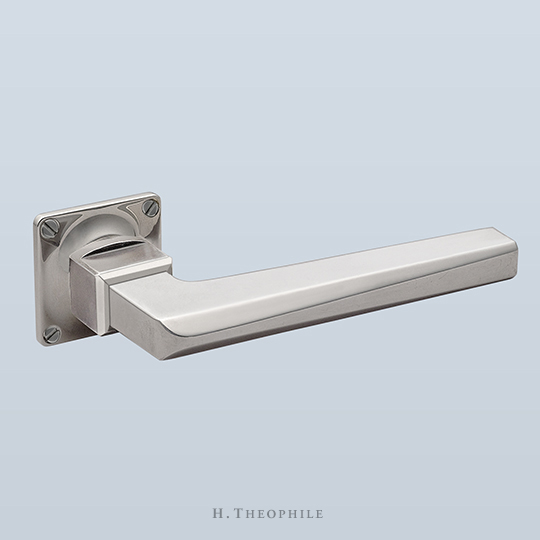

This lever is inspired by a 1930s French design. Shown here with the HT3190v backplate with visible screws.

The 4-3/4" lever is shown here with a 1-5/8" square backplate. See HT3190v for additional backplate information.

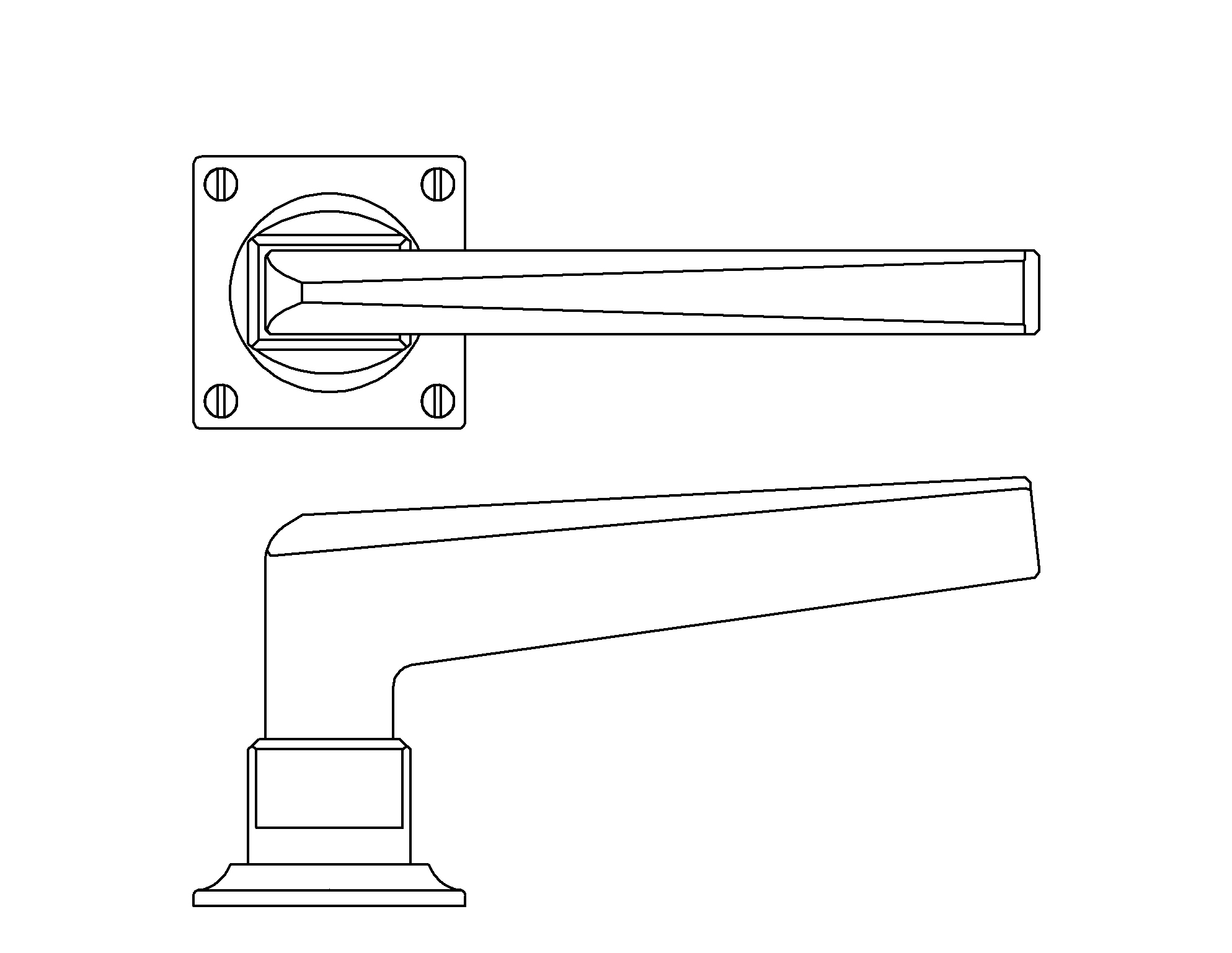

H Theophile Diagram HT6003-HT3190v.jpg

LEVER LENGTH BACKPLATE PROJECTION
4-1/4" overall 1-1/2" square 2-1/4"
4-1/2" overall 1-1/2" square 2-1/4"
4-5/8" overall 1-5/8" square 2-9/16"
4-3/4" overall 1-5/8" square 2-9/16"
4-7/8" overall 1-5/8" square 2-9/16"
