The HA9839 interior mortise privacy lockset can be used with knobs and levers. The deadbolt is thrown by a thumbturn, and can be retracted by the thumbturn or optional emergency release key.

Specify orientation as knob-above-thumbturn (as shown) or knob-below-thumbturn. Armor front features an adjustable bevel, and rabbet kits are available upon request.

Available in all finishes.

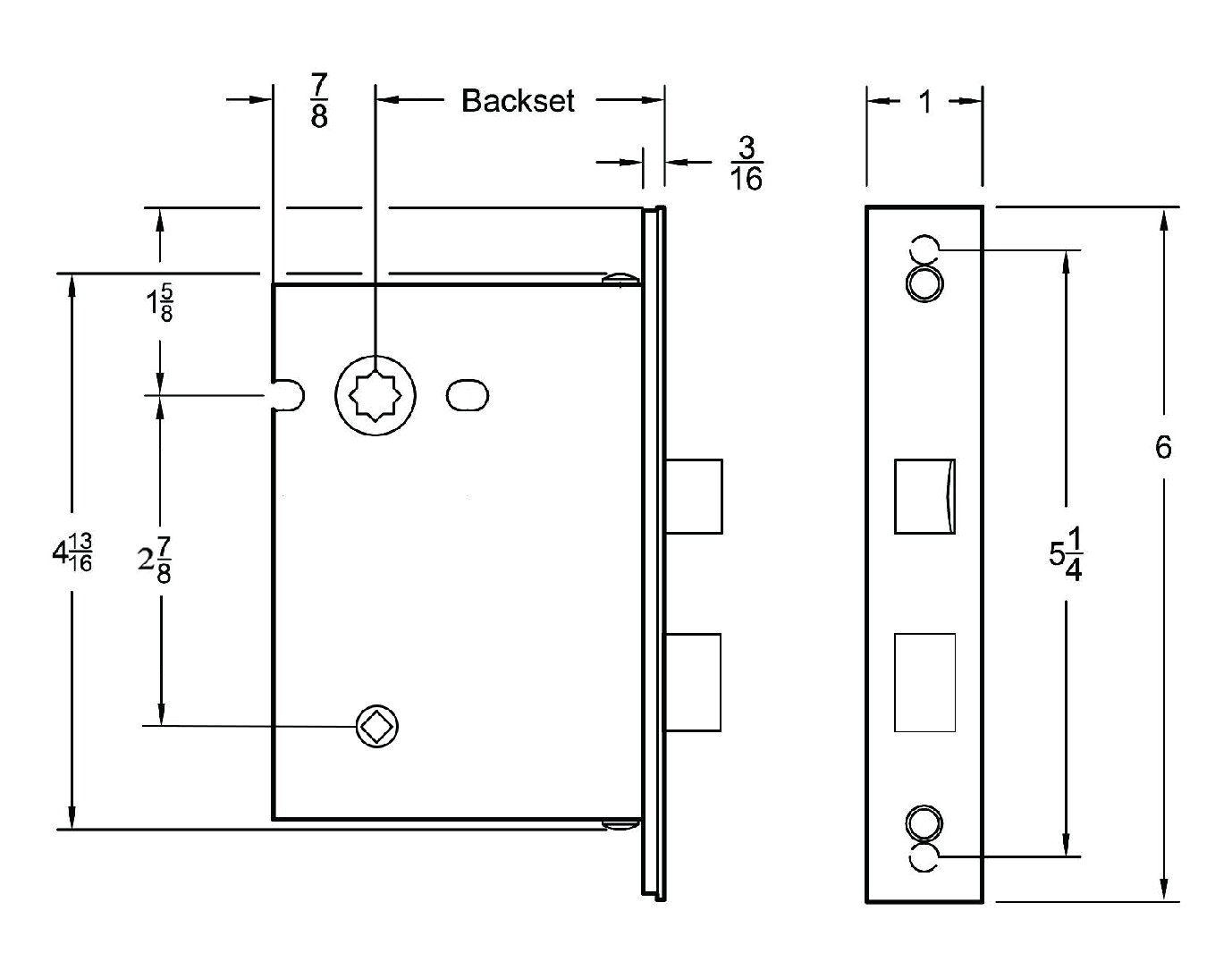

H Theophile Diagram HA9839.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2" 2-7/8" 3/4"
2-1/2" 3-3/8" 3/4"
2-3/4" 3-5/8" 3/4"
