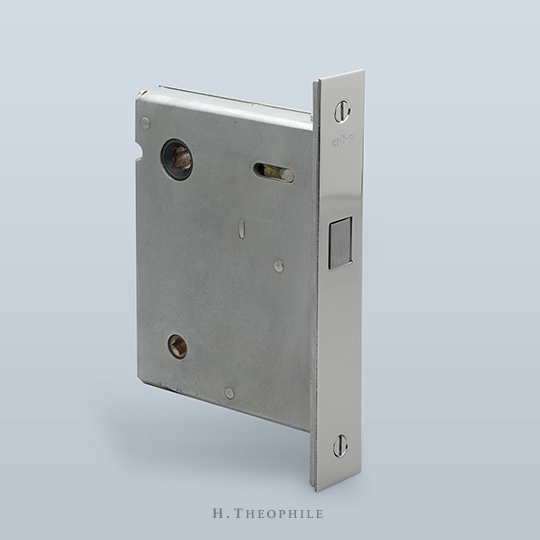

The HA9840 interior mortise passage lockset features a magnetic latch and can be used with knobs and levers. The magnetic latch sits flush to the armor front when the door is open and is thrown when the door is closed, allowing for a non-handed, "lip-less" strike in the jamb.

Specify orientation as knob-above-thumbturn (as shown) or knob-below-thumbturn. Armor front features an adjustable bevel, and rabbet kits are available upon request.

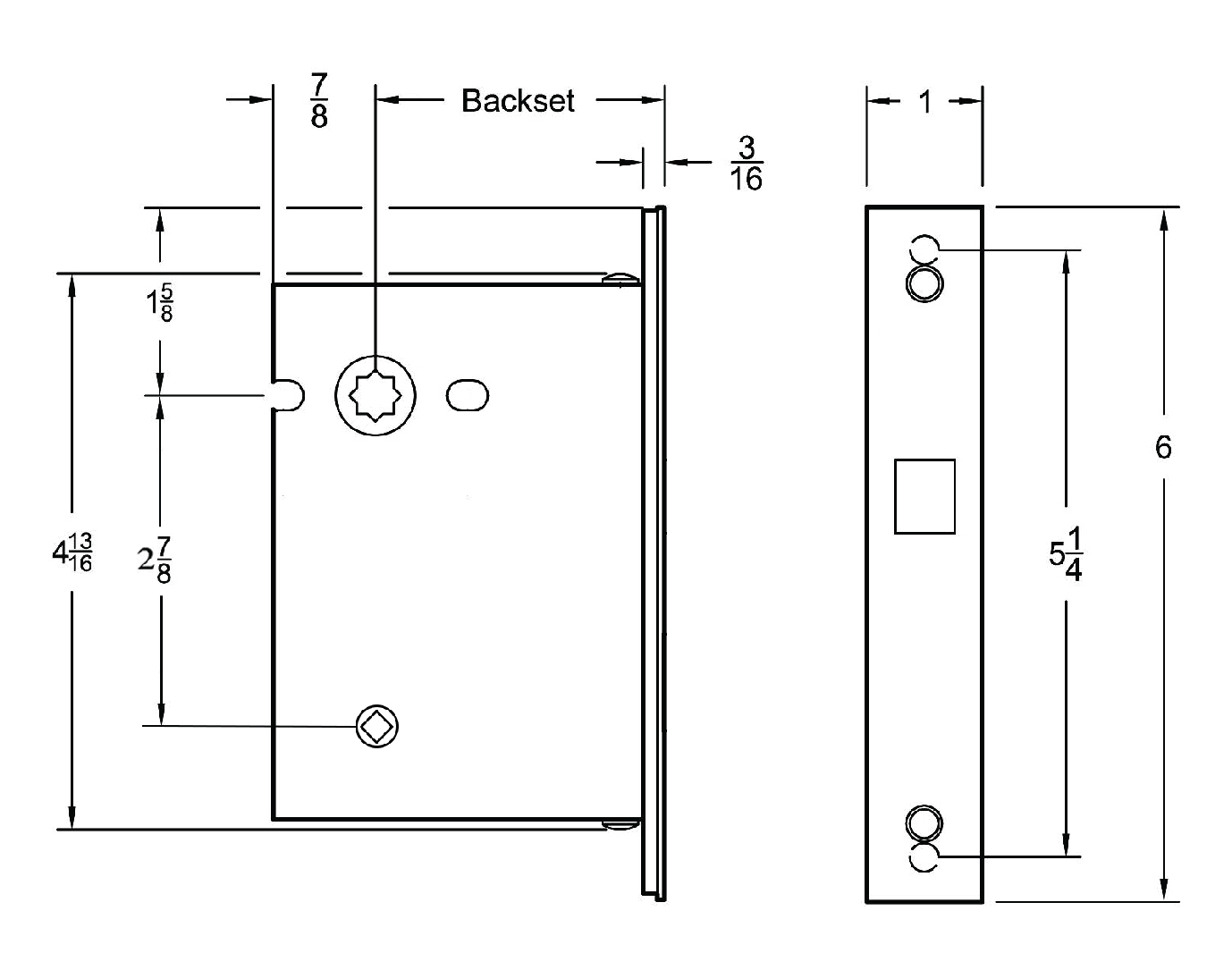

H Theophile Diagram HA9840.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2" 2-7/8" 3/4"
2-1/2" 3-3/8" 3/4"
2-3/4" 3-5/8" 3/4"
