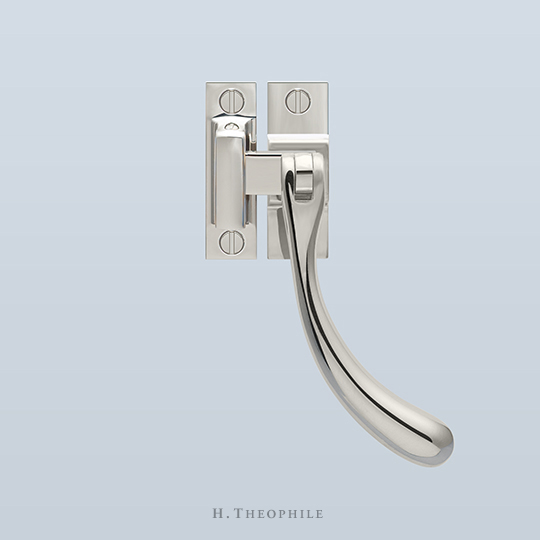

The HT7016 is a curved casement fastener for hinged casement windows. It can be custom finished to suit project requirements.

Shown here with a surface-mounted strike. Also available with a mortise strike upon request. Please specify handing when ordering.

Base plate dimension: 2-1/4" x 3/4"
Strike plate dimension: 2-1/4" x 5/8"

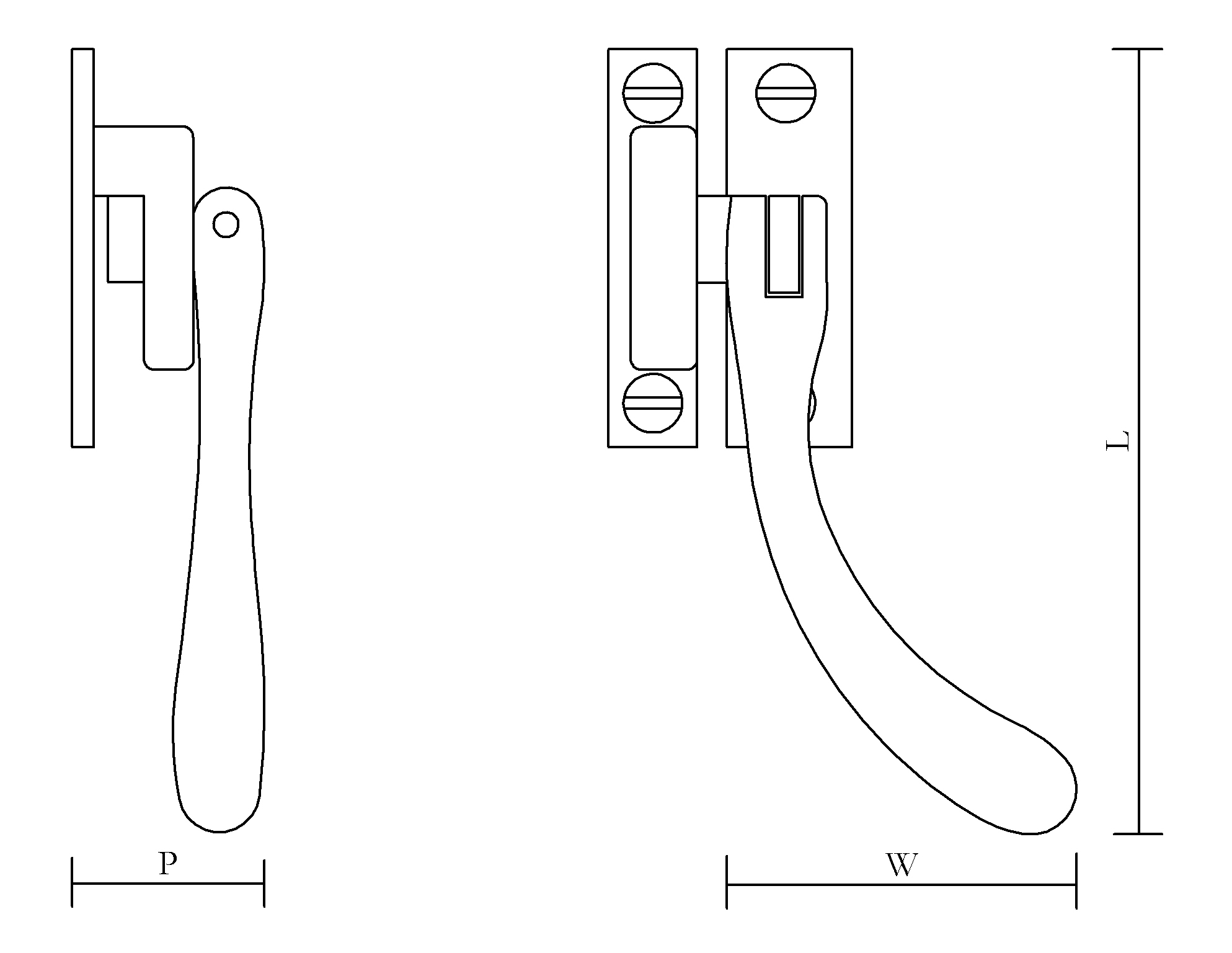

H Theophile Diagram HT7016.jpg

LENGTH (L) WIDTH (W) PROJECTION (P)
4-15/16" 1-7/8" 1-1/4"
