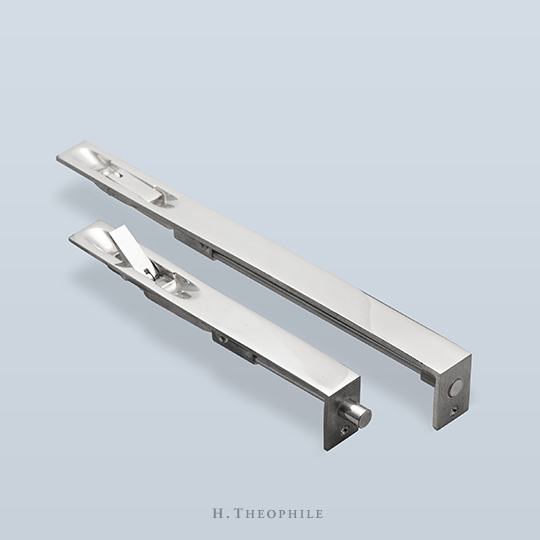

The HT7020 flush bolt is typically used on the passive leaf of a double door. It is mounted on the leading edge of the door, shooting a bolt into the header or floor, or both. A typical installation has two flush bolts per door leaf. It is available in standard and custom finishes.

A wide range of lengths is available, a selection of which is shown below. Mortised and surface-mounted strike options are available.

Throw: 5/8"

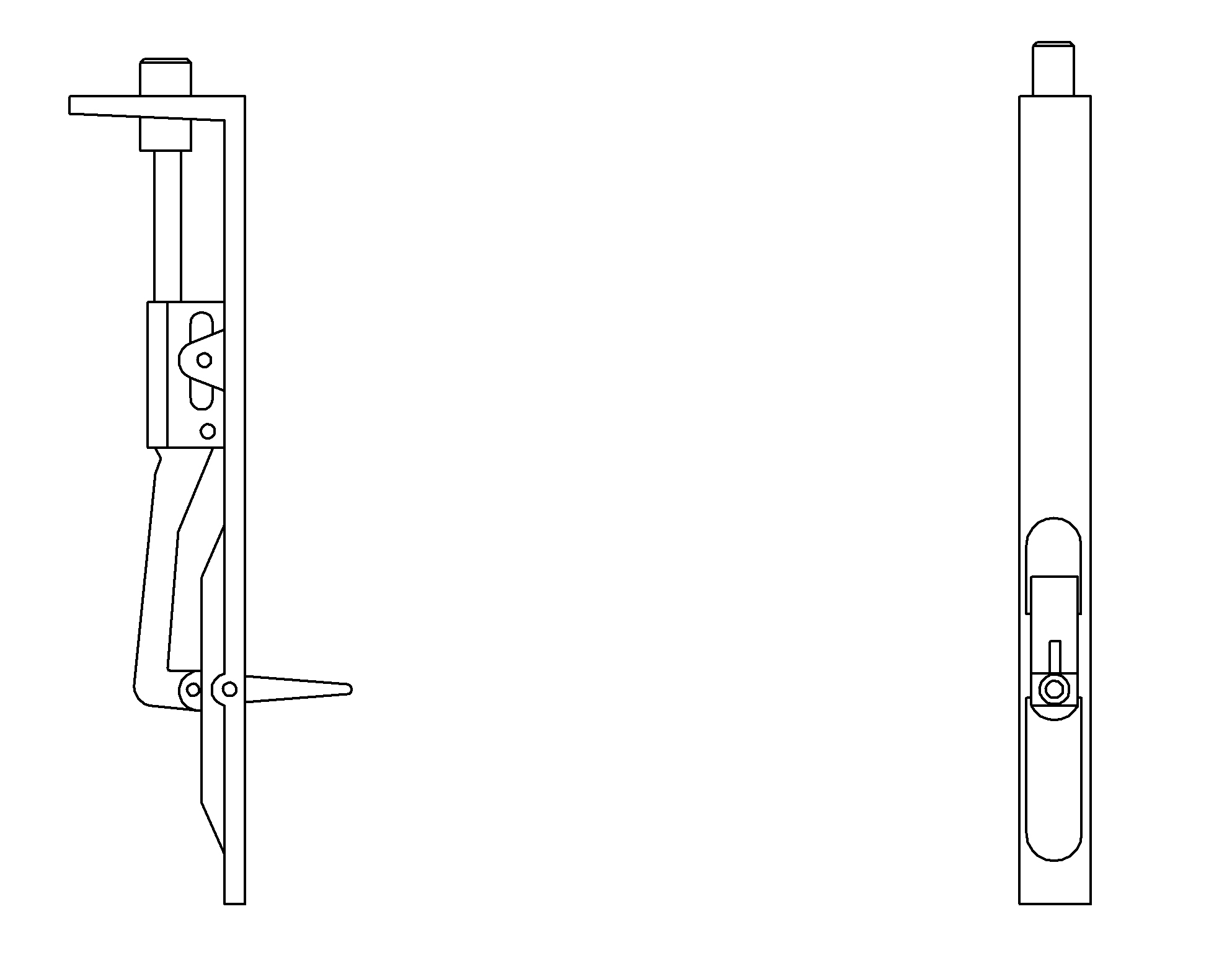

H Theophile Diagram HT7020.jpg

HEIGHT WIDTH DEPTH
8" 1" 1-1/2"
12" 1" 1-1/2"
18" 1" 1-1/2"
36" 1" 1-1/2"
