HT7024-HT9293

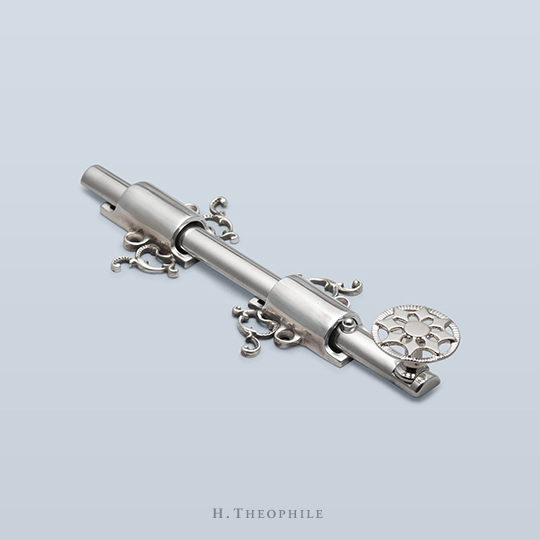

The HT7024 is a decorative surface-mounted cane bolt, shown here with the HT9293 pull. It is typically mounted on the interior face of the door, locking into the header and/or the floor. Surface-mounted universal and mortise strike options are available. This cane bolt is available in standard and custom finishes.

The HT9293 is available separately as a cabinet pull.

Rod guide dimensions: 2-1/8" l. x 2-3/4" w.
Throw: 1-1/8"

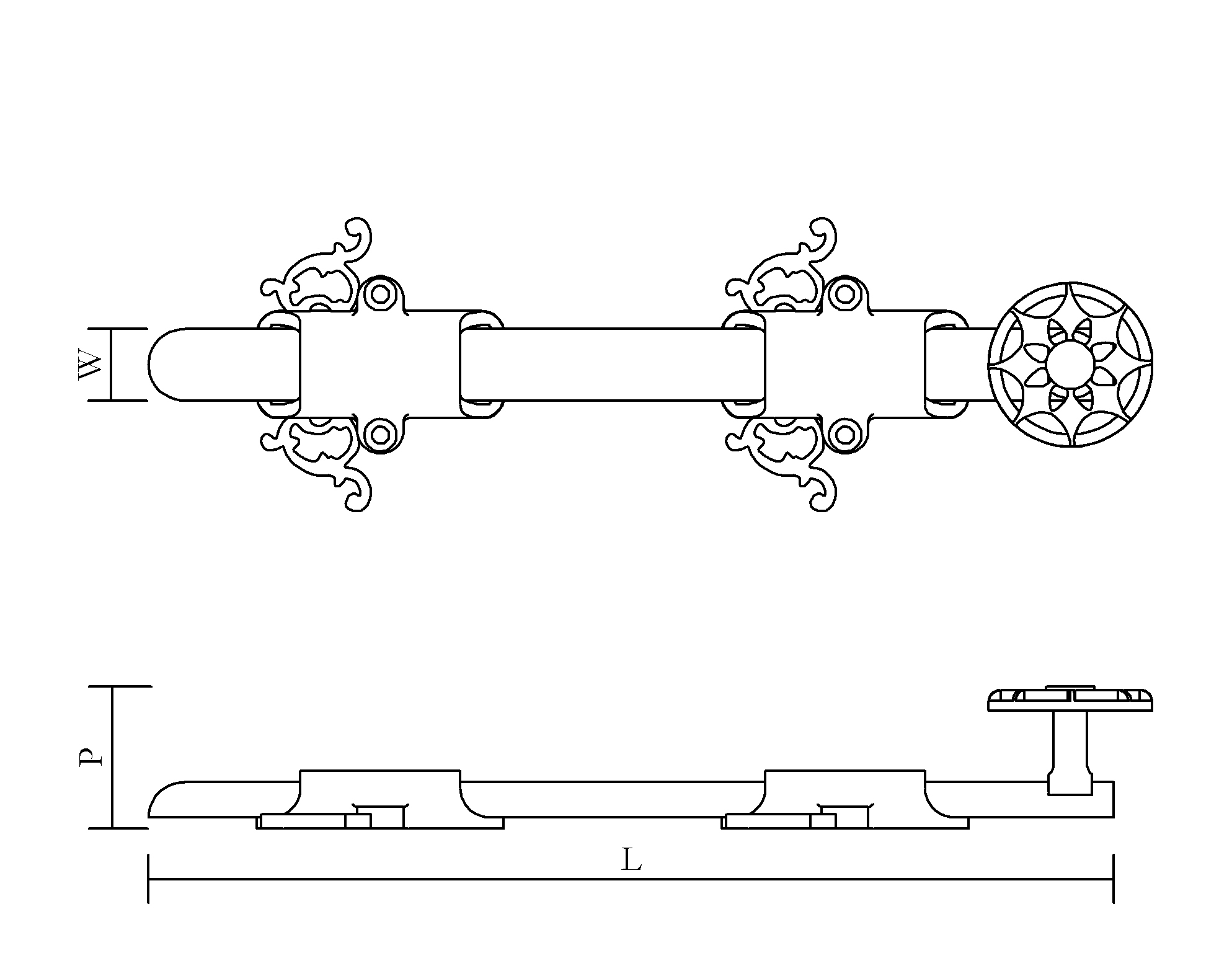

H Theophile Diagram HT7024-HT9293.jpg

BOLT             L x W PULL PROJECTION (P)
8" x 5/8" 1-7/16" dia. 1-1/8"
12" x 5/8" 1-7/16" dia. 1-1/8"
