H. Theophile - Since 1882

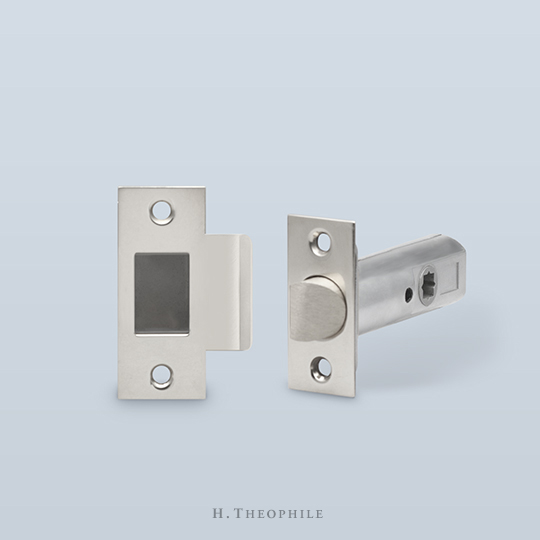

The HT9284 tubular latch offers the function of a standard passage latch but with simpler door preparation than its mortise lockset counterpart. It is not intended for use with heavy knobs and levers unless an auxiliary spring is specified.

Shown here with the standard T-shaped strike, which is sized per door specifications. The armor front and strike plate are available in standard and custom finishes.

Other custom backsets may be available upon request.

H Theophile Diagram HT9284.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2-3/8" 3-1/2" 1"
2-3/4" 3-7/8" 1"
HT9284-
HT2049
HT9285
HT9285-
HT2049
HT9297-
HT2049
