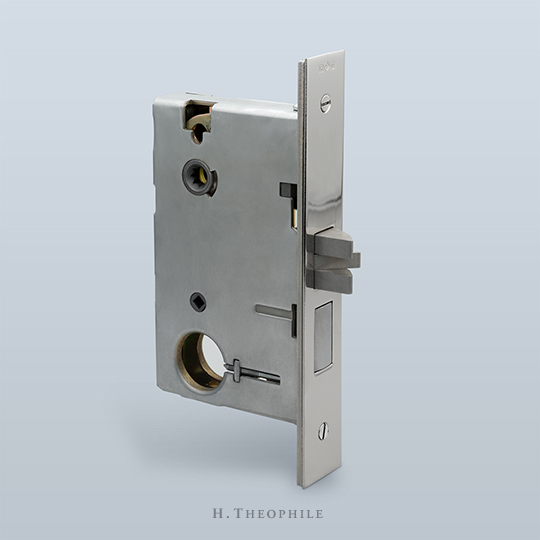

The HA9139 heavy-duty privacy mortise lockset can be used with knobs and levers. The deadbolt is thrown by a thumbturn, and can be retracted by the thumbturn or the inside lever. UL-Listed 3 hour (R13846), Grade 1 certified to ANSI/BHMA, A156.13.2005 standard.

Specify orientation as knob-above-thumbturn (as shown) or knob-below-thumbturn. Armor front features an adjustable bevel, and rabbet kits are available upon request.

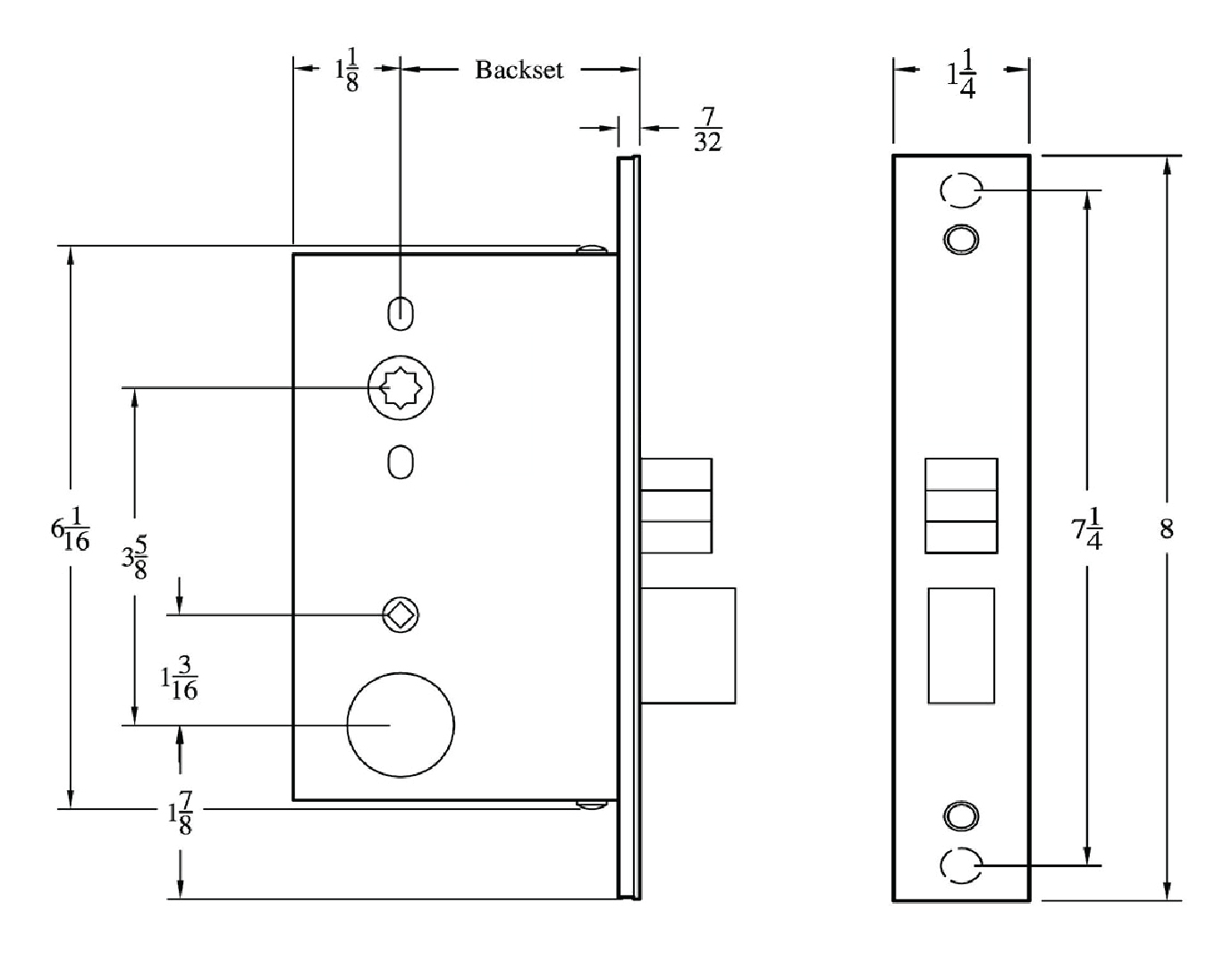

H Theophile Diagram HA9139.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2-1/2" 3-5/8" 15/16"
2-3/4" 3-7/8" 15/16"
3-3/4" 4-7/8" 15/16"
5" 6-1/8" 15/16"
6" 7-1/8" 15/16"
