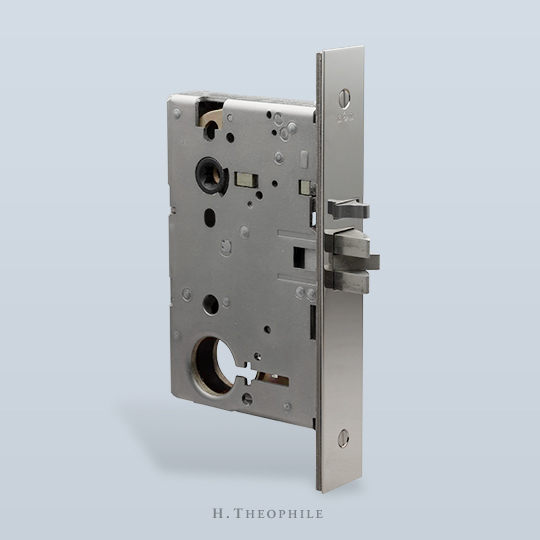

The HA9159 heavy-duty storeroom-function mortise lockset can be used with knobs and levers. The latch is locked automatically when the door is shut, and can be retracted by the keyed mortise cylinder as well as the inside lever. UL-Listed 3 hour (R13846), Grade 1 certified to ANSI/BHMA, A156.13.2005 standard.

Specify orientation as knob-above-latch (as shown) or knob-below-latch.

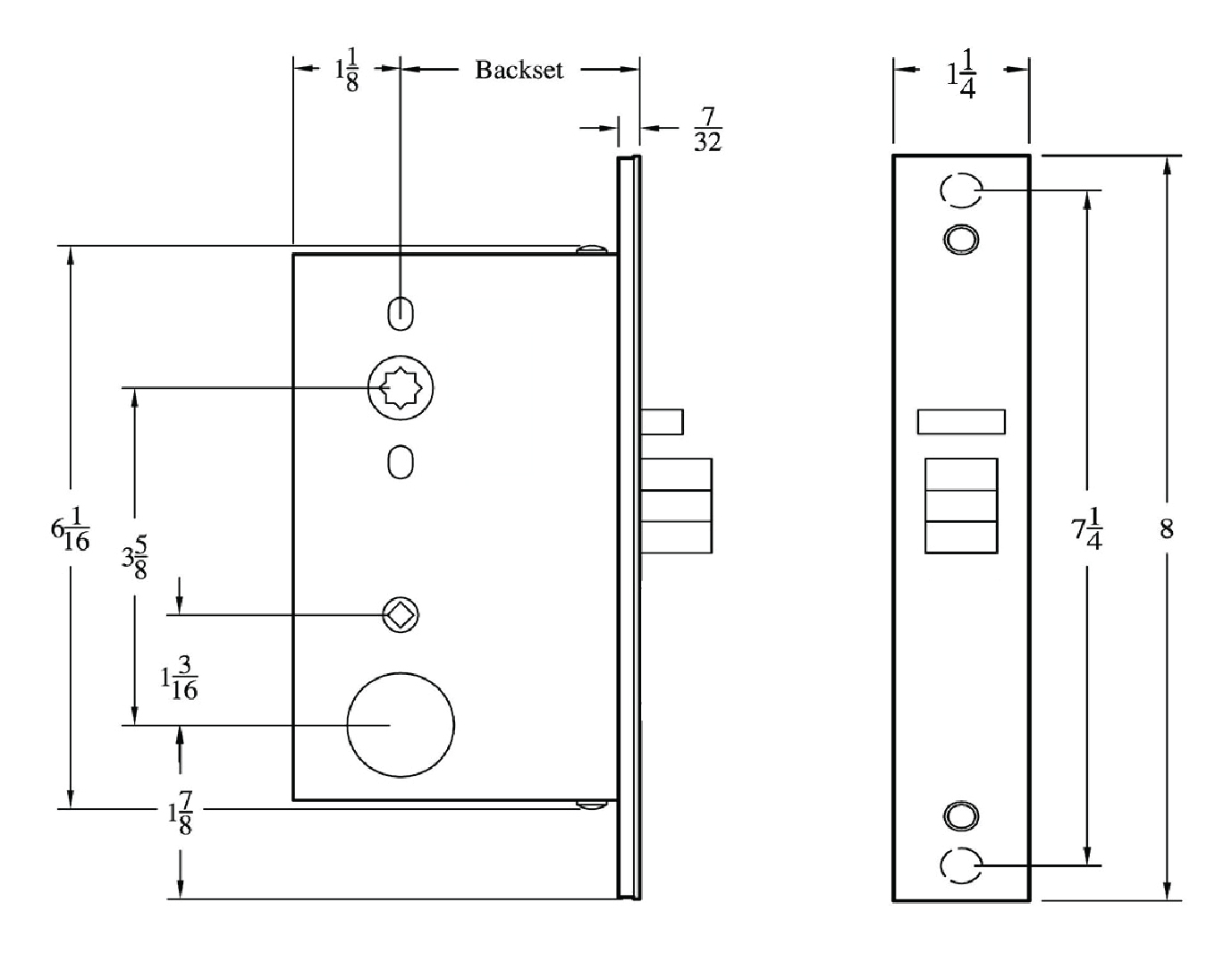

H Theophile Diagram HA9159.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2-1/2" 3-5/8" 15/16"
2-3/4" 3-7/8" 15/16"
3-3/4" 4-7/8" 15/16"
5" 6-1/8" 15/16"
6" 7-1/8" 15/16"
