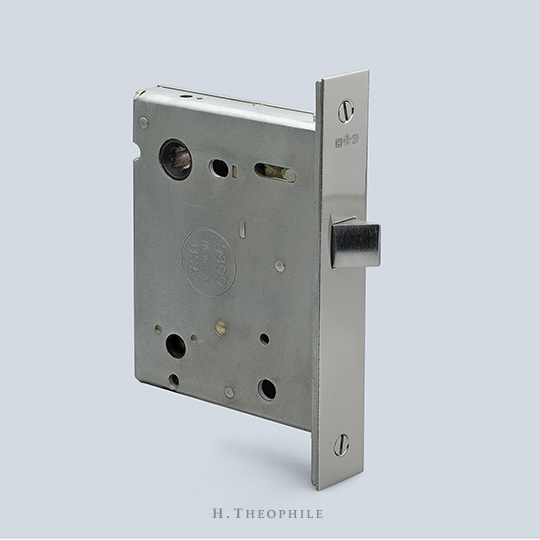

The HA9825 interior mortise passage lockset can be used with knobs and levers.

Specify orientation as knob-above-latch (as shown) or knob-below-latch. Armor front features an adjustable bevel, and rabbet kits are available upon request.

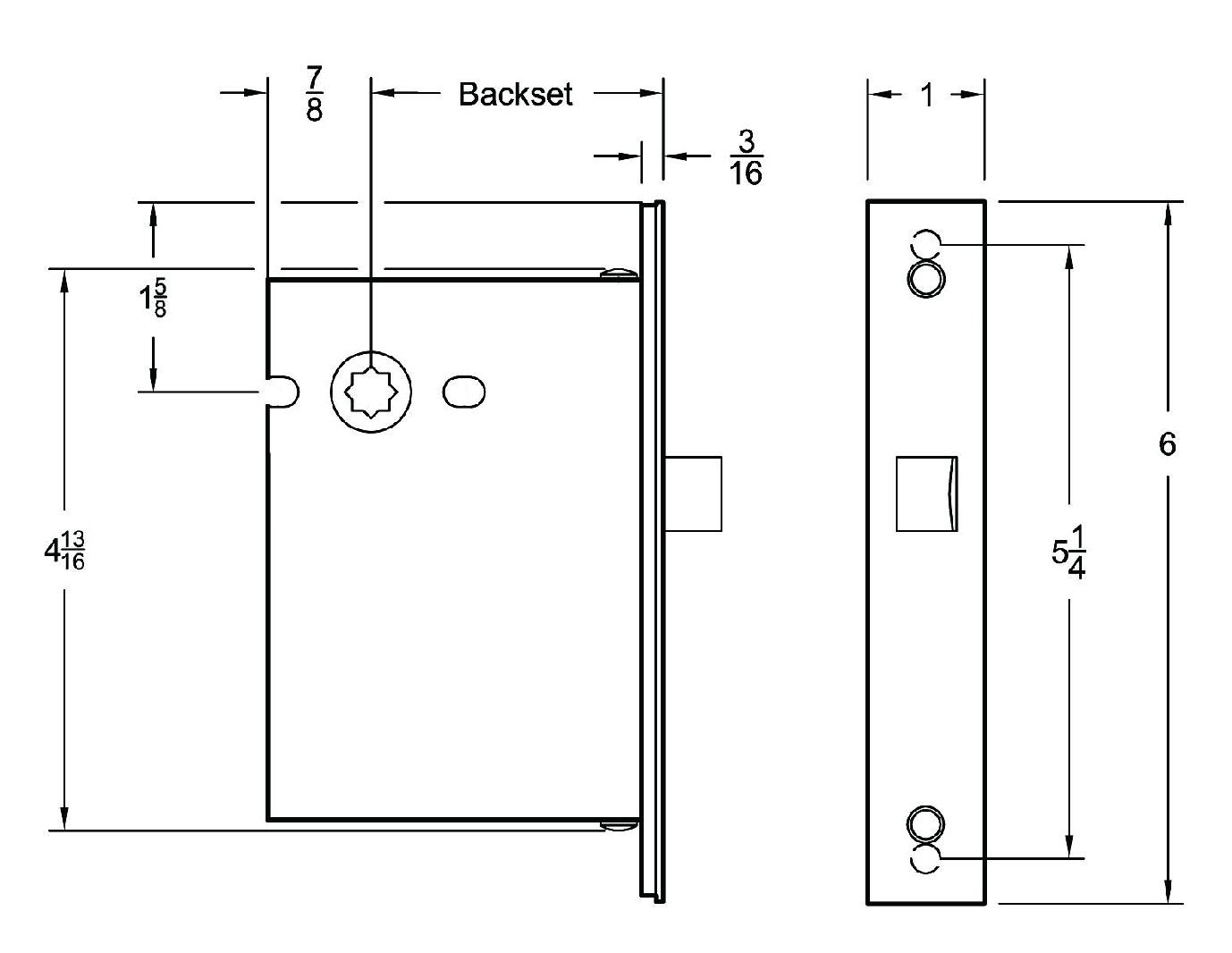

H Theophile Diagram HA9825.jpg

BACKSET TOTAL DEPTH BODY THICKNESS
2" 2-7/8" 3/4"
2-1/2" 3-3/8" 3/4"
2-3/4" 3-5/8" 3/4"
