HT0413-HT0980

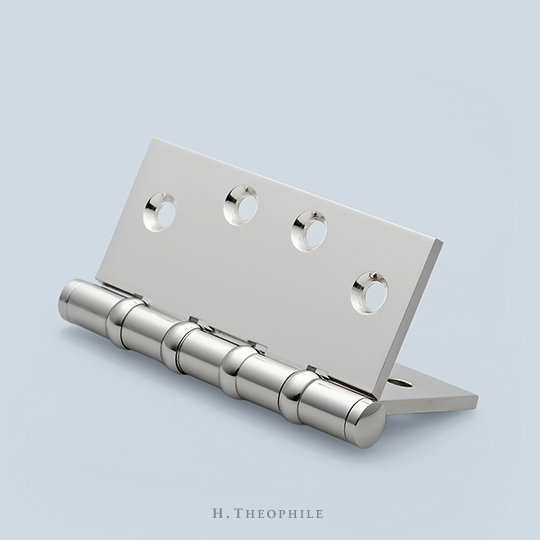

The HT0413 is a premium four ball-bearing butt hinge. Shown here with HT0980 button finials and four HT2518 curved bearings. Other sizes, finials, and bearing designs are available.

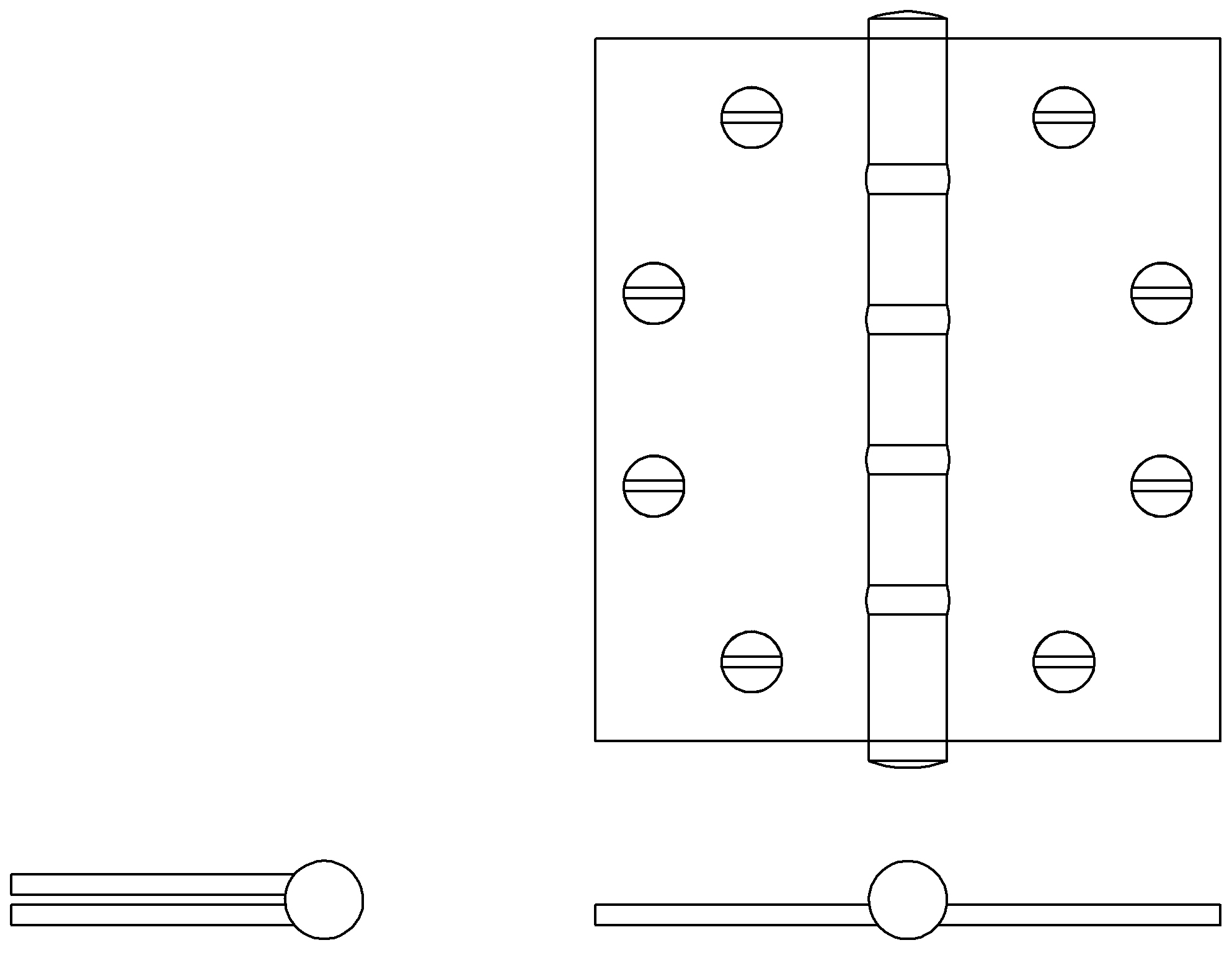

H Theophile Diagram HT0413-HT0980.jpg

LEAF HT. WIDTH KNUCKLE LEAF
4" 3-1/2" 1/2" .17"
4" 4" 1/2" .17"
4-1/2" 4" 1/2" .17"
4-1/2" 4-1/2" 9/16" .18"
5" 4" 9/16" .18"
5" 4-1/2" 9/16" .18"
5" 5" 9/16" .19"
6" 6" 5/8" .203"
